Kit reductor de area de membrana HP4750 25 mm

Especificaciones del fabricante

1140144

Datos visibles del fabricante

Membrane Area Reducer Kit for HP4750(X), 25mm Membrane Area Reducer for HP4750 Celda agitada. Product includes 25 mm reducer, porous support disc, and o-ring. SKU: 1140144 Brand: Sterlitech

Contenido visible del fabricante

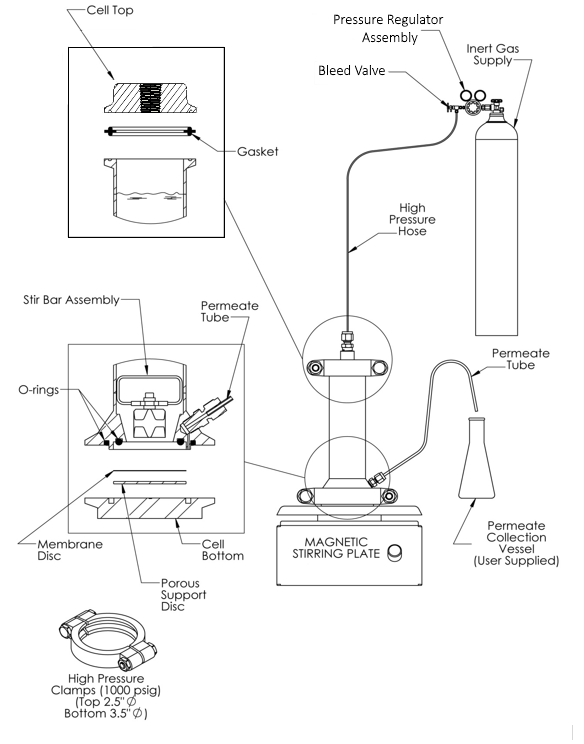

Especificaciones Unique Design: The top of the cell is easily removed to fill the vessel with up to 300 mL of solution. The bottom is removable for easy membrane change-out. The design enables low hold-up volume of 1mL to prevent waste of valuable solutions. High Pressure Operations: The HP4750 (X)Celda agitada can complete a variety of separations from microfiltration to reverse osmosis. The standard cell is designed for safe operation to 69bar (1000psig) (HP4750X: 172 bar (2500 psig)). Inert Gas Pressure Source: Standard sources of compressed air or inert gas allow variable, safe, and consistent supply of pressure to perform separations. Volatile solutions can be processed safely because of HP4750(X) Celda agitada does not require a pump to supply operating pressure. Pressure regulators and relief valves are available from Sterlitech. Mechanical Stirring Mechanism: Sterlitech can provide an optional mechanical stirrer to be used with the HP4750 (X). Accepts Standard Membrane Disks: HP4750 (X) Celda agitada accommodates any 47-50 mm diameter membrane disk. For convenience, Sterlitech offers precut and packaged membranes in single type or assortment packs, from a wide selection of RO , NF , UF , MF , FO , OSN , and MD membranes. Autoclavable: All components are fully autoclavable and sterilizable. HP4750 HP4750X HP4750X Hastelloy™ Membrane Size 1.93 in dia. nominal (49 mm) 1.93 in dia. nominal (49 mm) 1.93 in dia. nominal (49 mm) Área activa de membrana 2.26 in 2 (14.6 cm 2 ) 2.26 in 2 (14.6 cm 2 ) 2.26 in 2 (14.6 cm 2 ) Processing Volume Up to 300 mL Up to 300 mL Up to 300 mL Hold-Up Volume 1 mL 1 mL 1 mL Max Pressure 1000 psig (69 bar) w/high-pressure clamps 2500 psig (172 bar) 2500 psig (172 bar) Max Temp 250 °F (121 °C) at 800 psig (55 bar) 400 °F (205 °C) at 2000 psig (138 bar) 400 °F (205 °C) at 2000 psig (138 bar) pH Range Membrane Dependent Membrane Dependent Membrane Dependent Conexiones Permeate Outlet: ⅛ in dia. 316L SS tubing; Pressure Inlet: ¼ in FNPT Permeate Outlet: ⅛ in dia. 316L SS tubing; Pressure Inlet: ¼ in FNPT Permeate Outlet: Hastelloy™ (C-276); Pressure Inlet: ¼ in FNPT Cell Body 316L Acero inoxidable 316L Acero inoxidable Hastelloy™ (C-276) O-Rings Buna-N, others available as options Viton or PTFE Viton or PTFE Gasket Buna-N, others available as options Viton or PTFE Viton or PTFE Stir Bar PTFE PTFE PTFE / Hastelloy Components Cell Diameter 2.0 in (5.1 cm) 2.75 in (7.0 cm) 2.75 in (7.0 cm) Cell Height 7.8 in (19.9 cm) 10 in (22.4 cm) 10 in (22.4 cm) Cell Width 5.7 in (14.6 cm) w/high-pressure couplings NA NA Applications Cross/tangential flow test cells are typically used in membrane applications such as : Membrane test and quality assurance Biological or biopharmaceutical processing Concentration of fruit juices and extracts Food and beverage processing Desalination of brackish water or seawater Purification of rinse water in electroplating tanks Municipal or industrial water and wastewater purification
