Descripción general
Introduction ........................................................................................................... 1
II.Characteristics ........................................................................................................ 2
III. Main technical parameters ................................................................................... 3
1.Working room temperature profile.................................................................... 3
2.Temperature and humidity diagram .................................................................. 4
IV.Working Condition ................................................................................................ 4
V.Attentions ................................................................................................................ 4
VI.Operation Instruction ............................................................................................ 5
1 .Instructions for use ........................................................................................... 5
2. Operation step .................................................................................................. 5
3.Operation and display instructions of Meter..................................................... 6
3.1 definition ...................................................................................................................... 6
3.2．Display windo ........................................................................................................... 6
3.3．Definition of keys ...................................................................................................... 7
3.4 Operation and Usage .................................................................................................... 7
3.4.1．Power on the controller ................................................................................... 7
3.4.2．Modification of setting value .......................................................................... 7
3.4.3．Set segment number or cycle. ......................................................................... 8
3.4.4．Start and Stop .................................................................................................. 8
3.4.5．Reservation Function ...................................................................................... 8
3.4.6．Fault Prompt .................................................................................................... 9
3.4.7．Defrost function............................................................................................... 9
3.4.8．Power off memory function ............................................................................ 9
3.4.9 Check and set the internal parameters ................................................................ 9
4 Parameters’ tables.............................................................................................. 9
5. instrument wiring diagram ............................................................................. 19
6.General faults and troubleshooting ................................................................. 19
I. Introduction

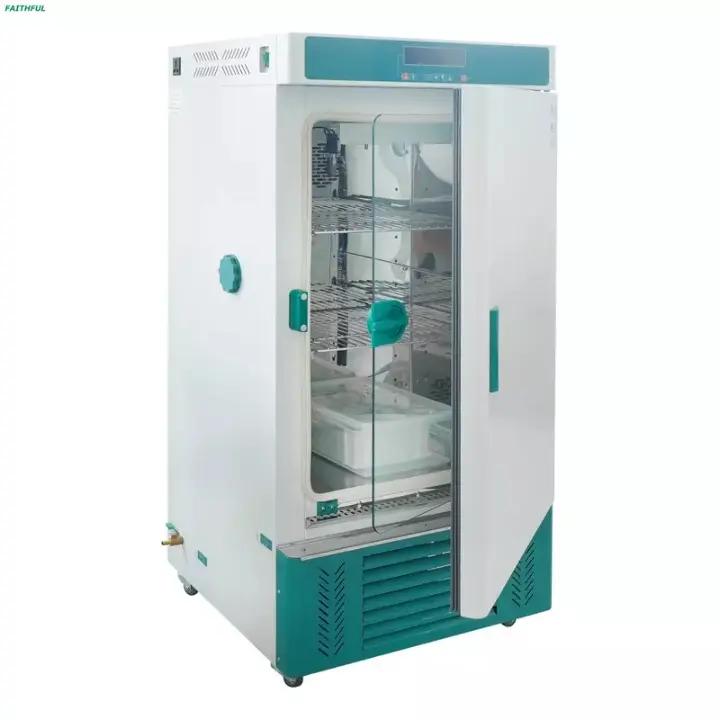

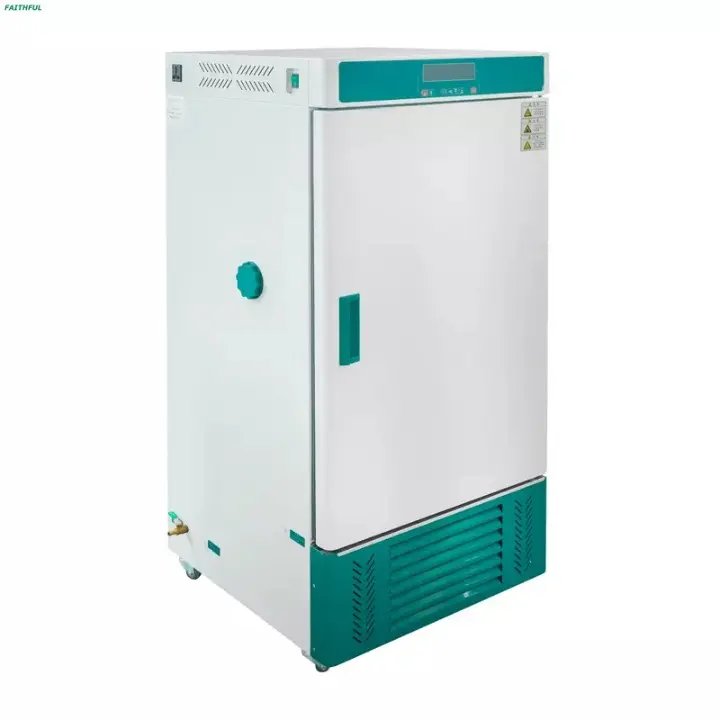

The BE-BoIncTemHuCon model Constant Temperature and Humidity Incubator is the ideal
testing equipment for natural environment simulation. With 30 segments of program memory, it
comes with functions of constant temperature, auto humidity control, day / night cycle, and
over-temperature protection. Its applications range from seed germination, seedling raising, plant
growth, microorganism cell culturing, and insects rearing to commercial medicinal, building and
timber material performance testing, as well as industrial product quality inspection and constant
temperature and humidity experiment.
II.Characteristics
1. High-brightness large screen liquid crystal display panel and light-touching operational key, in
which cycle period, segments, time, temperature, humidity are display clearly at a glance. It can
be connect with computer through RS232 interface, which ensures the whole experiments process
controlled in a safety state.
2. Reliable security; the instrument has diverse of anti-jamming measures and has function of
over-temperature protection, thermal resistor short-circuit protection and delay protection.
3. The whole structure is made with advanced technique. Cold rolling steel Surface with
electrostatic spraying surface which is attractive and durable.
4. Advanced air flue circulate mode, which ensures balanced flow rate in working room and
prevents powdery substance,
Young plants from blowing away. World famous brand compressor; environmental protection
refrigerant R134a is reliable, it ensures experiment goes on safely and effective.
Options:
① RS-485/232 interface and supervisory computer control software.
② Printer(miniature)
③ Power failure alarm
④ Leakage protection
⑤ Danfoss compressor
The above option should be ordered and produced in our company.
III. Main technical parameters
Model BE-BoIncTemHuCon70B BE-BoIncTemHuCon150B BE-BoIncTemHuCon250B
Supply power 220V/50Hz
Temp. range With humidification 10-65 ℃ without humidification : 0-65 ℃
Temp. Distinguish 0.1℃
ability
Temp. fluctuation High Temp ± 1℃ Low Temp ±0.5℃
Humidity range 45%~90%RH
Humidity error ±5%~8% RH
Heating power 500W 800W 1200W
Interior 420*350*500 500*400*750 500*500*950
dimensions(mm)
Exterior dimensions 570*560*1020 640*620*1270 660*700*1470
(mm)
Packaging 730*720*1170 820*760*1430 880*825*1645
dimensions(mm)
N.W. (KG) 59.5 68.5 71.5
G.W. (KG) 85.5 92.5 115.5
1.Working room temperature profile
Temp. spot Temp(℃) Temp. spot Temp(℃)
① 36.63 ⑤ 36.91
② 36.98 ⑥ 36.86
③ 37.5 ⑦ 36.88
④ 37.33 ⑧ 36.64
⑨ 37.15
Diagram:
Cooling down speed (SPC-250) Heating up speed (SPX-250)
Note: The above specification are tested under chamber temperature ≤25℃, it is just usable for
our products.
2.Temperature and humidity diagram
IV.Working Condition
1. Ambient temperature:5℃~32℃(e.g. set temperature≤10℃, ambient temperature≤28℃)
2. Relative humidity: ≤80%RH
3. Air pressure: 86-10Kpa
4. Keep the climate chamber away from vibration and corrosive gas.
5. Keep the container away from direct sunlight and other cooling and heating source.
6. Keep it away from high concentration of stove; install it horizontally and leave some
space between machine and wall.
7. Install it in room with good ventilation.
V.Attentions
Safety Attentions
1. Connect the device to an earthed power supply to ensure...
