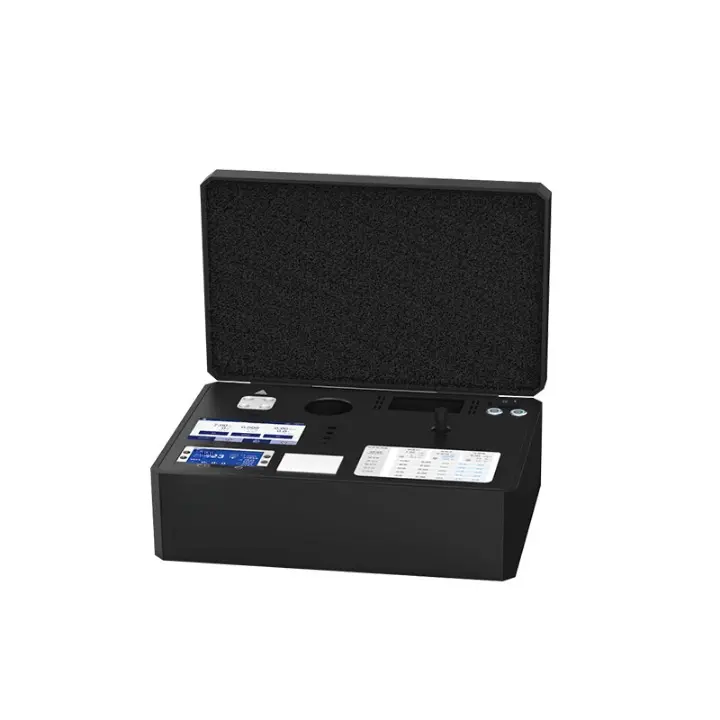

Analizador de Agua Portátil
https://www.cotecno.cl/shop/b2-01-010507-analizador-de-agua-portatil-581121
https://www.cotecno.cl/web/image/product.template/581121/image_1920?unique=d7dd6c7
analizadores de agua portatiles 25 C de Cuvette /Colorimetric tube
El instrumento utiliza tecnología de interferencia de banda estrecha y filtrado óptico de alta precisión para filtrar una gran cantidad de luz parásita, mejorando así la pureza de la luz que ingresa al sistema, evitando el impacto del ruido y la deriva del instrumento y mejorando la estabilidad del instrumento.
Resumen de lectura rápida; especificaciones completas en la pestaña técnica.
Descripción general
El instrumento utiliza tecnología de interferencia de banda estrecha y filtrado óptico de alta precisión para filtrar una gran cantidad de luz parásita, mejorando así la pureza de la luz que ingresa al sistema, evitando el impacto del ruido y la deriva del instrumento y mejorando la estabilidad del instrumento.
- Repetibilidad: ≤±3%.
- Estabilidad óptica: ≤0.001A/10min.
- Vida útil de la fuente de luz: 100.000 horas.
- Tiempo de medición: 10min.
- Número de curvas: 200 se pueden configurar.
- Almacenamiento de datos: 5000 registros se pueden almacenar.
| Especificación |
modelo 1
|
|---|---|
| Configuracion | modelo 1 |
| Peso bruto | Peso bruto |
| 21kg | ≤8% |
| Repeatability | ≤±3% |
| Optical Stability | ≤0.001A/10min |
| Light Source Life | 100,000 hours |
| Measurement Time | 10min |
| Number of Curves | 200 can be set |
| Data Storage | 5000 pieces can be stored |
| Wavelength Range | 380~800nm |
| Display | 7 inch color touch screen/5.6-inch omron button integrated screen |
| Printer | Built-in thermal printer |
| Reading Cuvette | Cuvette /Colorimetric tube |
| Electrochemical Test Items | Electrochemical Test Items |
| pH | -1.99~19.99pH |
| pH | 0.1/0.01 |
| pH | ±0.01pH |
| pH | ±0.01 pH/3h |
| ORP | -2000mV~0~2000mV |
| ORP | 1mV |
| ORP | ±0.1% FSmV |
| Conductivity | (0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10) |
| Conductivity | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm |
| Conductivity | ±1.0% F.S. |
| Conductivity | 25℃/20℃/18℃ |
| Conductivity | K=0.1, 1, 10 |
| TDS | (0~100)g/L |
| TDS | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm |
| TDS | ±1.0% F.S. |
| Salinity | (0~100)ppt |
| Salinity | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm |
| Salinity | ±1.0% F.S. |
| Resistivity | (0~100)MΩ·cm |
| Resistivity | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm |
| Resistivity | ±1.0% F.S. |
| DO | (0~20.00)mg/L(ppm), (0~200.0)% |
| DO | 0.1/0.01 mg/L(ppm), 1/0.1 % |
| DO | ±0.10 mg/L |
| DO | (±0.07mg/L)/1h |
| DO | (0~200)kPa, manual |
| DO | (0~45)ppt, manual |
| Other Specifications | 0~100°C/32~212°F, manual or automatic |
| Other Specifications | 500 data sets, USB communication interface, wireless Bluetooth interface |
| Other Specifications | AC220V±10%/50Hz |
| Other Specifications | 525*200*390mm |
| Other Specifications | 17kg |
| Other Specifications | 695*365*500mm |
| Other Specifications | 21kg |
| Variante | Configuracion | Peso bruto | 21kg | Repeatability | Optical Stability | Light Source Life | Measurement Time | Number of Curves | Data Storage | Wavelength Range | Display | Printer | Reading Cuvette | Electrochemical Test Items | pH | pH | pH | pH | ORP | ORP | ORP | Conductivity | Conductivity | Conductivity | Conductivity | Conductivity | TDS | TDS | TDS | Salinity | Salinity | Salinity | Resistivity | Resistivity | Resistivity | DO | DO | DO | DO | DO | DO | Other Specifications | Other Specifications | Other Specifications | Other Specifications | Other Specifications | Other Specifications | Other Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
modelo 1
|
modelo 1 | Peso bruto | ≤8% | ≤±3% | ≤0.001A/10min | 100,000 hours | 10min | 200 can be set | 5000 pieces can be stored | 380~800nm | 7 inch color touch screen/5.6-inch omron button integrated screen | Built-in thermal printer | Cuvette /Colorimetric tube | Electrochemical Test Items | -1.99~19.99pH | 0.1/0.01 | ±0.01pH | ±0.01 pH/3h | -2000mV~0~2000mV | 1mV | ±0.1% FSmV | (0.00~20.00)μS/cm (20.0~200.0)μS/cm (200~2000)μS/cm (2.00~20.00)mS/cm (20.0~200.0)mS/cm (200~2000)mS/cm(K=10) | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm | ±1.0% F.S. | 25℃/20℃/18℃ | K=0.1, 1, 10 | (0~100)g/L | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm | ±1.0% F.S. | (0~100)ppt | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm | ±1.0% F.S. | (0~100)MΩ·cm | 0.01/0.1/1μS/cm, 0.01/0.1/1 mS/cm | ±1.0% F.S. | (0~20.00)mg/L(ppm), (0~200.0)% | 0.1/0.01 mg/L(ppm), 1/0.1 % | ±0.10 mg/L | (±0.07mg/L)/1h | (0~200)kPa, manual | (0~45)ppt, manual | 0~100°C/32~212°F, manual or automatic | 500 data sets, USB communication interface, wireless Bluetooth interface | AC220V±10%/50Hz | 525*200*390mm | 17kg | 695*365*500mm | 21kg |
Guia de compra
analizadores de agua portatiles 25 C de Cuvette /Colorimetric tube: la compra se decide principalmente por especificacion: cotizar y 21kg: ≤8%
Usos recomendados
Adecuado cuando la especificacion requerida es especificacion: cotizar. Adecuado cuando la especificacion requerida es 21kg: ≤8%. Adecuado cuando la especificacion requerida es repeatability: ≤±3%
Criterios de compatibilidad
Verifique especificacion: cotizar antes de confirmar la compra. Verifique 21kg: ≤8% antes de confirmar la compra. Verifique repeatability: ≤±3% antes de confirmar la compra
Como validar si sirve
Compare esos valores con el requerimiento tecnico antes de cotizar
Recomendacion de compra
Elija este producto si especificacion: cotizar y 21kg: ≤8% coinciden con el requerimiento tecnico
