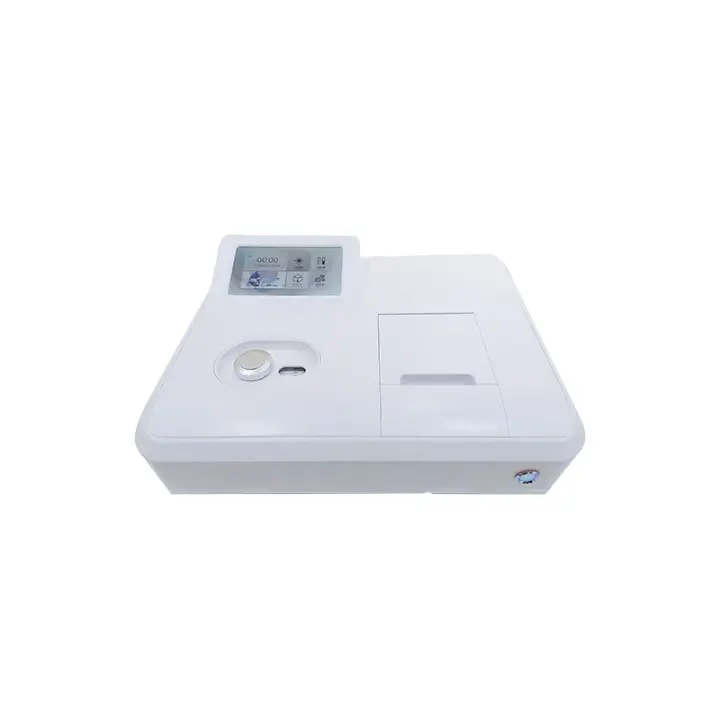

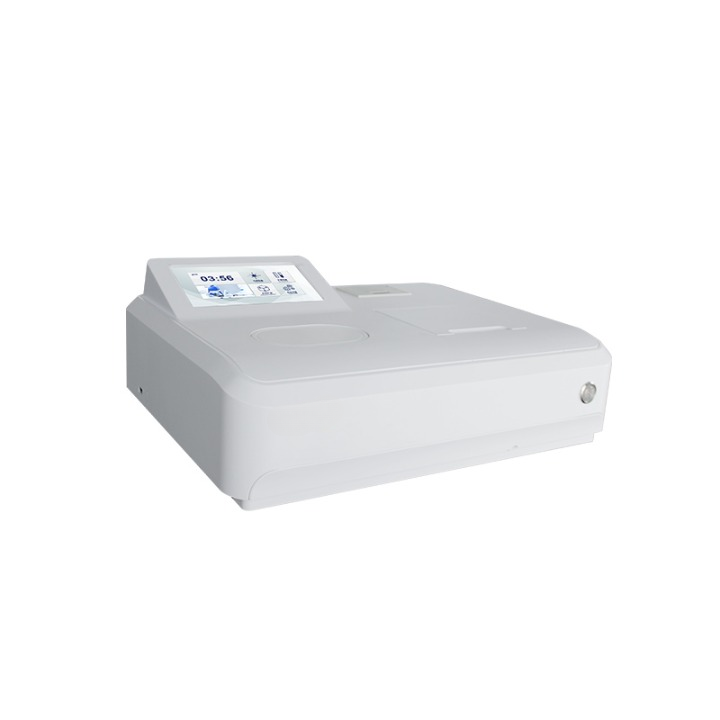

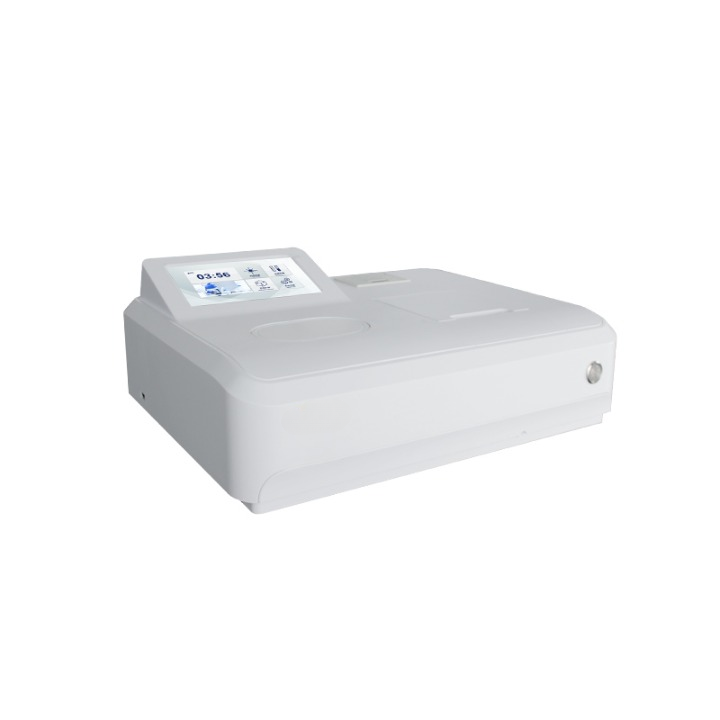

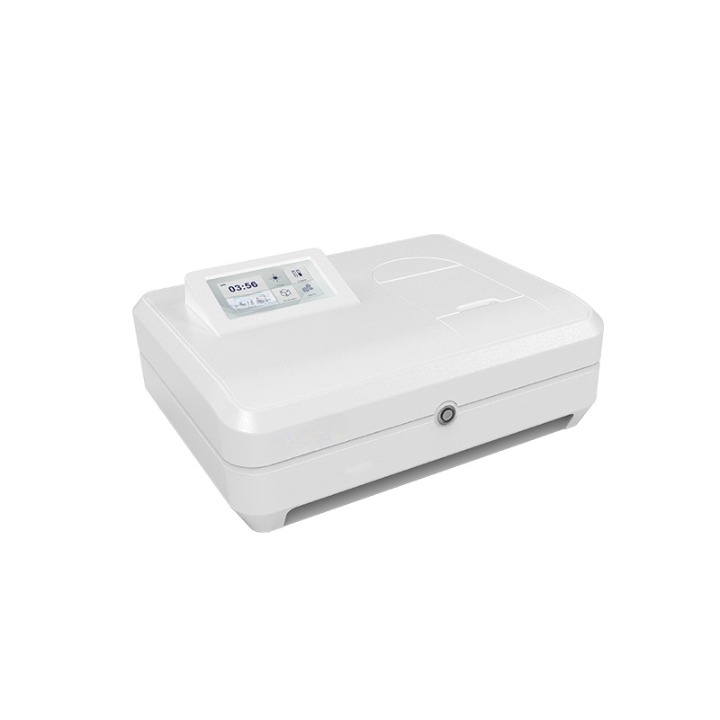

- Espectrofotometro UV/VIS 190-1100 nm
Espectrofotometro UV/VIS 190-1100 nm
https://www.cotecno.cl/shop/b2-01-010667-espectrofotometro-581281
https://www.cotecno.cl/web/image/product.template/581281/image_1920?unique=1763292
Espectrofotómetro UV/VIS
El espectrofotómetro de la serie UV/VIS es una nueva generación de instrumentos de la serie de espectrofotómetros de alto rendimiento y alta confiabilidad, accesorios ópticos selectos de alto rendimiento, chip AD de 24 bits de alta precisión (análogo económico tradicional), hardware wifi iot convencional.
Resumen de lectura rápida; especificaciones completas en la pestaña técnica.
Descripción general
El espectrofotómetro de la serie UV/VIS es una nueva generación de instrumentos de la serie de espectrofotómetros de alto rendimiento y alta confiabilidad, accesorios ópticos selectos de alto rendimiento, chip AD de 24 bits de alta precisión (análogo económico tradicional), hardware wifi iot convencional.
El instrumento económico es inteligente, de alto rendimiento, bajo nivel de ruido, alta estabilidad, etc.
- Pantalla: pantalla táctil de alta definición de 7 pulgadas 1024*768.
- Sistema óptico: Haz simple.
- Monochromator: C-T Monochromator, Red holográfica blazed 1200 lines/nm.
- Rango de longitud de onda: 340~1020nm.
- Bandwidth: 4nm(2nm opcional).
- Exactitud de longitud de onda: ±2nm.
| Especificación |
pack 520*450*300 · 1
|
pack 520*450*300 · 2
|
pack 520*450*300 · 3
|
pack 520*450*300 · 4
|
pack 700*580*340
|
|---|---|---|---|---|---|
| Di play | 7 high definition 1024*768 touch creen | 7 high definition 1024*768 touch creen | 7 high definition 1024*768 touch creen | 7 high definition 1024*768 touch creen | 7 high definition 1024*768 touch creen |
| Optical Sy tem | Single beam | Single beam | Single beam | Single beam | Single beam |
| Monochromator | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | C-T Monochromator, Blazed Holographic Grating 1200 line /nm |
| Wavelength Range | 340~1020nm | 195~1020nm | 320~1100nm | 190~1100nm | 190~1100nm |
| Bandwidth | 4nm(2nm optional) | 4nm(2nm optional) | 4nm(2nm optional) | 4nm(2nm optional) | 2nm |
| Wavelength Setting | Manual | Manual | Auto | Auto | Auto |
| Wavelength Accuracy | ±2nm | ±2nm | ±1nm | ±1nm | ±0.3nm |
| Wavelength Reproducibility | ±1nm | ±1nm | ±0.5nm | ±0.5nm | ±0.1nm |
| Stray Light | 0.1%T | 0.1%T | 0.1%T | 0.1%T | 0.05%T |
| Photometric Range | 0~200%T, -0.3~3.0A | 0~200%T, -0.3~3.0A | 0~200%T, -0.3~3.0A | 0~200%T, -0.3~3.0A | 0~200%T, -0.3~3.0A |
| Photometric Accuracy | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) |
| Photometric Reproducibility | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) |
| Photometric Stability | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) |
| Lamp Switch | Auto, 340nm | Auto, 340nm | Auto, 340nm (Settable) | Auto, 340nm (Settable) | Auto, 340nm (Settable) |
| Stability | 0.002A (500nm, 3min) | 0.002A (500nm, 3min) | 0.002A (500nm, 3min) | 0.002A (500nm, 3min) | 0.001A (500nm, 3min) |
| Noi e | 0.15%T | 0.15%T | 0.15%T | 0.15%T | 0.15%T |
| Detector | Imported ilicon photodiode | Imported ilicon photodiode | Imported ilicon photodiode | Imported ilicon photodiode | Imported ilicon photodiode |
| Output | USB & Bluetooth | USB & Bluetooth | USB & Bluetooth | USB & Bluetooth | USB & Bluetooth |
| WIFI Module | Ye | Ye | Ye | Ye | Ye |
| Wirle Printing | Ye (Bluetooth printer i optional) | Ye (Bluetooth printer i optional) | Ye (Bluetooth printer i optional) | Ye (Bluetooth printer i optional) | Ye (Bluetooth printer i optional) |
| PC Software | Optional | Optional | Optional | Optional | Optional |
| IoT Module | Ye | Ye | Ye | Ye | Ye |
| Supply Power | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 220V, 50/60Hz; 110V, 50/60Hz(Optional) |
| External Size(W*D*H)mm | 450*370*190 | 450*370*190 | 450*370*190 | 450*370*190 | 530*420*230 |
| Package Size(W*D*H)mm | 520*450*300 | 520*450*300 | 520*450*300 | 520*450*300 | 700*580*340 |
| Net Weight(kg) | 7 | 9 | 7 | 9 | 15 |
| Gro Weight(kg) | 9 | 11 | 9 | 11 | 19 |
| Variante | Di play | Optical Sy tem | Monochromator | Wavelength Range | Bandwidth | Wavelength Setting | Wavelength Accuracy | Wavelength Reproducibility | Stray Light | Photometric Range | Photometric Accuracy | Photometric Reproducibility | Photometric Stability | Lamp Switch | Stability | Noi e | Detector | Output | WIFI Module | Wirle Printing | PC Software | IoT Module | Supply Power | External Size(W*D*H)mm | Package Size(W*D*H)mm | Net Weight(kg) | Gro Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
pack 520*450*300 · 1
|
7 high definition 1024*768 touch creen | Single beam | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | 340~1020nm | 4nm(2nm optional) | Manual | ±2nm | ±1nm | 0.1%T | 0~200%T, -0.3~3.0A | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | Auto, 340nm | 0.002A (500nm, 3min) | 0.15%T | Imported ilicon photodiode | USB & Bluetooth | Ye | Ye (Bluetooth printer i optional) | Optional | Ye | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 450*370*190 | 520*450*300 | 7 | 9 |
|
pack 520*450*300 · 2
|
7 high definition 1024*768 touch creen | Single beam | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | 195~1020nm | 4nm(2nm optional) | Manual | ±2nm | ±1nm | 0.1%T | 0~200%T, -0.3~3.0A | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | Auto, 340nm | 0.002A (500nm, 3min) | 0.15%T | Imported ilicon photodiode | USB & Bluetooth | Ye | Ye (Bluetooth printer i optional) | Optional | Ye | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 450*370*190 | 520*450*300 | 9 | 11 |
|
pack 520*450*300 · 3
|
7 high definition 1024*768 touch creen | Single beam | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | 320~1100nm | 4nm(2nm optional) | Auto | ±1nm | ±0.5nm | 0.1%T | 0~200%T, -0.3~3.0A | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | Auto, 340nm (Settable) | 0.002A (500nm, 3min) | 0.15%T | Imported ilicon photodiode | USB & Bluetooth | Ye | Ye (Bluetooth printer i optional) | Optional | Ye | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 450*370*190 | 520*450*300 | 7 | 9 |
|
pack 520*450*300 · 4
|
7 high definition 1024*768 touch creen | Single beam | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | 190~1100nm | 4nm(2nm optional) | Auto | ±1nm | ±0.5nm | 0.1%T | 0~200%T, -0.3~3.0A | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | Auto, 340nm (Settable) | 0.002A (500nm, 3min) | 0.15%T | Imported ilicon photodiode | USB & Bluetooth | Ye | Ye (Bluetooth printer i optional) | Optional | Ye | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 450*370*190 | 520*450*300 | 9 | 11 |
|
pack 700*580*340
|
7 high definition 1024*768 touch creen | Single beam | C-T Monochromator, Blazed Holographic Grating 1200 line /nm | 190~1100nm | 2nm | Auto | ±0.3nm | ±0.1nm | 0.05%T | 0~200%T, -0.3~3.0A | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.5%T, ±0.004Ab (0~0.5A), ±0.008Ab (0.5~1.0A) | ±0.15%T, ±0.002Ab (0~0.5A), ±0.004Ab (0.5~1.0A) | Auto, 340nm (Settable) | 0.001A (500nm, 3min) | 0.15%T | Imported ilicon photodiode | USB & Bluetooth | Ye | Ye (Bluetooth printer i optional) | Optional | Ye | 220V, 50/60Hz; 110V, 50/60Hz(Optional) | 530*420*230 | 700*580*340 | 15 | 19 |
Guia de compra
Espectrofotometro UV/VIS: compare sistema optico, Monochromator y Wavelength Range para decidir si el equipo cubre su proceso real.
Que cambia entre variantes

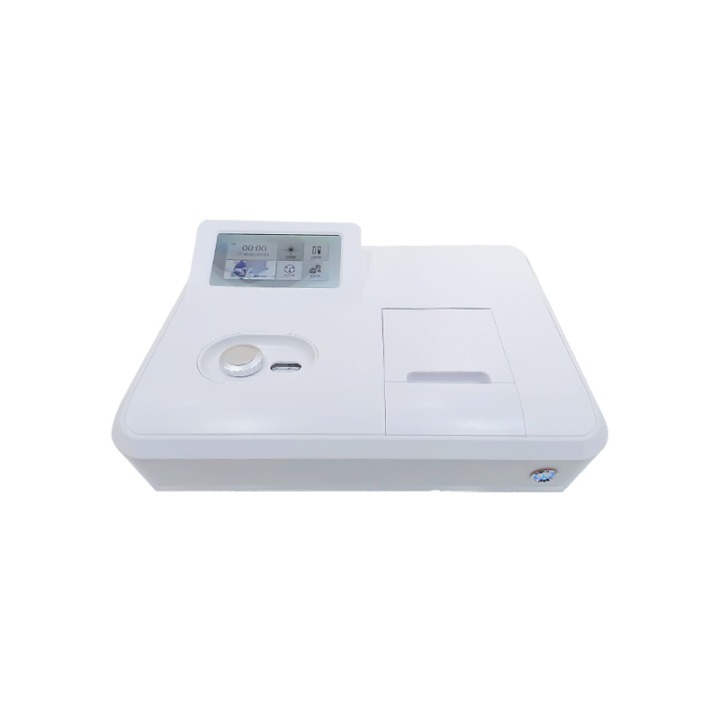

B2-01-010667.1: Monochromator: C-T Monochromator, Blazed Holographic Grating 1200 lines/nm; Wavelength Range: 340~1020nm.
B2-01-010667.2: Wavelength Range: 195~1020nm; Stability: 0.001A (500nm, 3min).
B2-01-010667.3: Wavelength Range: 320~1100nm; tamano externo(W*D*H)mm: 450*370*190.
B2-01-010667.4: Wavelength Range: 190~1100nm; tamano externo(W*D*H)mm: 450*370*190.
Escenarios de uso recomendados
Conviene cuando su proceso exige monochromator: c-t monochromator, blazed holographic grating 1200 lines/nm y wavelength range: 340~1020nm.
Conviene cuando su proceso exige wavelength range: 195~1020nm y stability: 0.001a (500nm, 3min).
Conviene cuando su proceso exige wavelength range: 320~1100nm y tamano externo(w*d*h)mm: 450*370*190.
Conviene cuando su proceso exige wavelength range: 190~1100nm y tamano externo(w*d*h)mm: 450*370*190.
Como elegir rapido
Empiece comparandSistema óptico, Monochromator y Wavelength Range. Descarte cualquier variante que no cubra esos puntos con margen para su carga real.
Recomendacion de compra
Compre la alternativa que cubra sistema optico, Monochromator y Wavelength Range con margen segun su carga real.
