vector components of accelerometer and magnetic field; temperature of accelerometer and magnetic compass
Calculated and visualized values
Inclination; azimuth; AX; AY; AZ – components of acceleration vector HX; HY; HZ – magnetic field components GTF – Gravity Tool Face – angle of probe rotation relative to gravity field MTF – Magnetic Tool Face – angle of probe rotation relative to magnetic field AccelTemp - accelerometer sensor temperature MagTemp – magnetometer sensor temperature G - TOT – total gravity field in g M - TOT - total magnetic field in Gauss
Angular resolution
0.02°
Absolute tilt measurement accuracy
± 0.2°
Absolute accuracy of azimuth measurement
± 0.5°
Relative angle measurement error
0.1°
Measurement speed
up to 8 Hz
The number of digits
3C accelerometer - 24 Bit 3C magnetometer - 16 bit
Baud rate
115200
Maximum number of measurements per pass
up to 32; 768
Supply current
At sampling rate 8 Hz - 16 mA At sampling rate 1 / 4 Hz - 500 μA In standby mode - 50 μA
Standard connector
Souriau 200 Bar; IP69
Interface
RS - 422; USB 2.0
Power supply
5 - 12 V DC / via USB from PC
Operating system
Windows 10

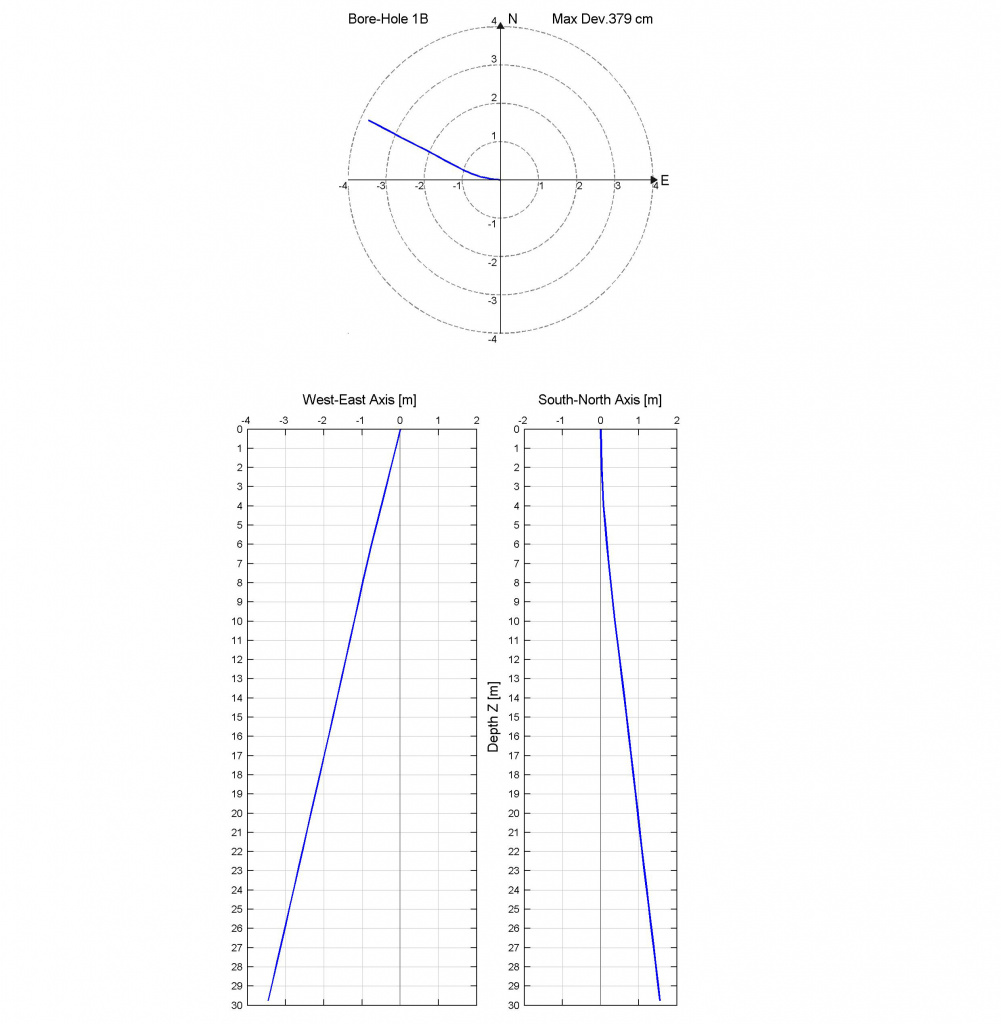

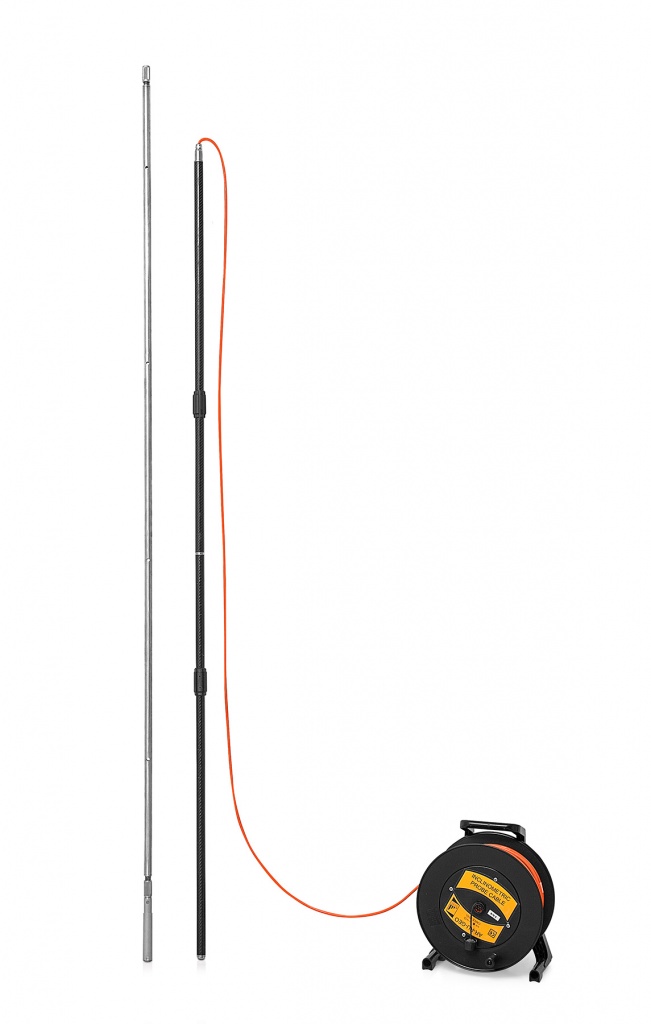

Number of probe sections
2 x 1 m each - inclinometer block and extension
Total probe length
2 m
External diameter
30 mm

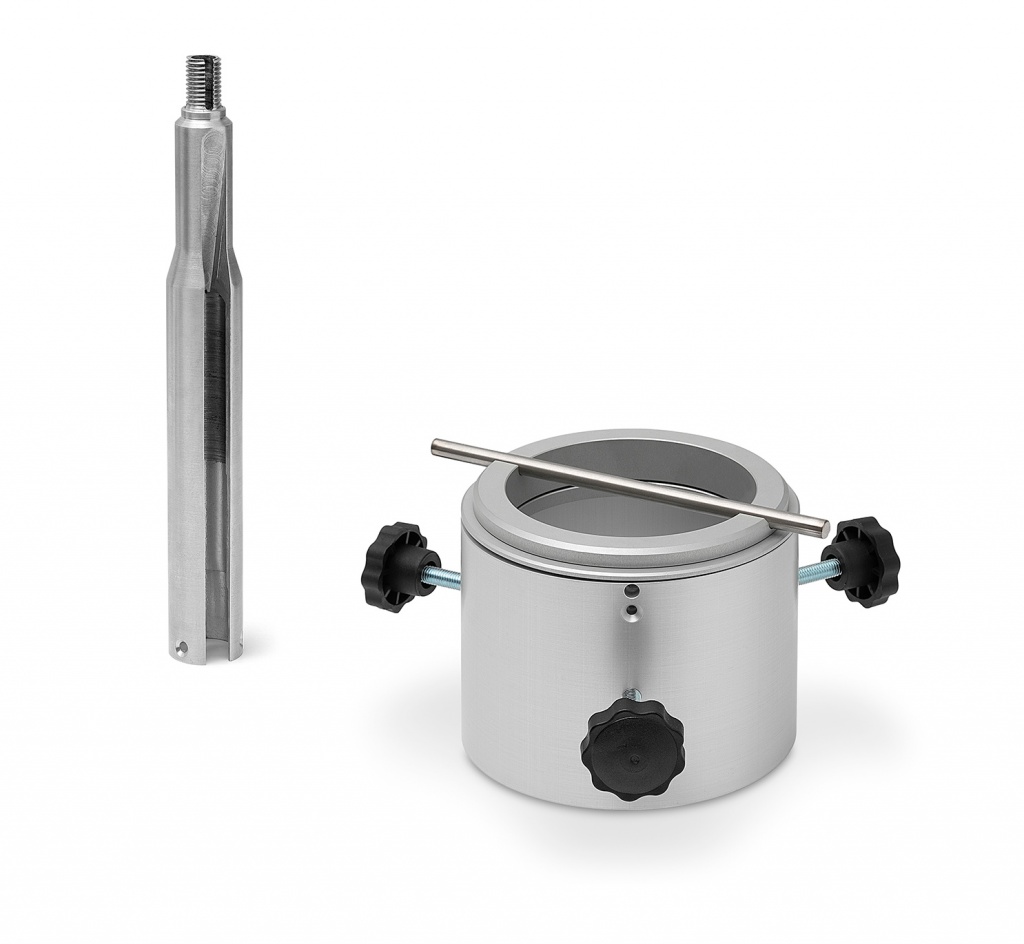

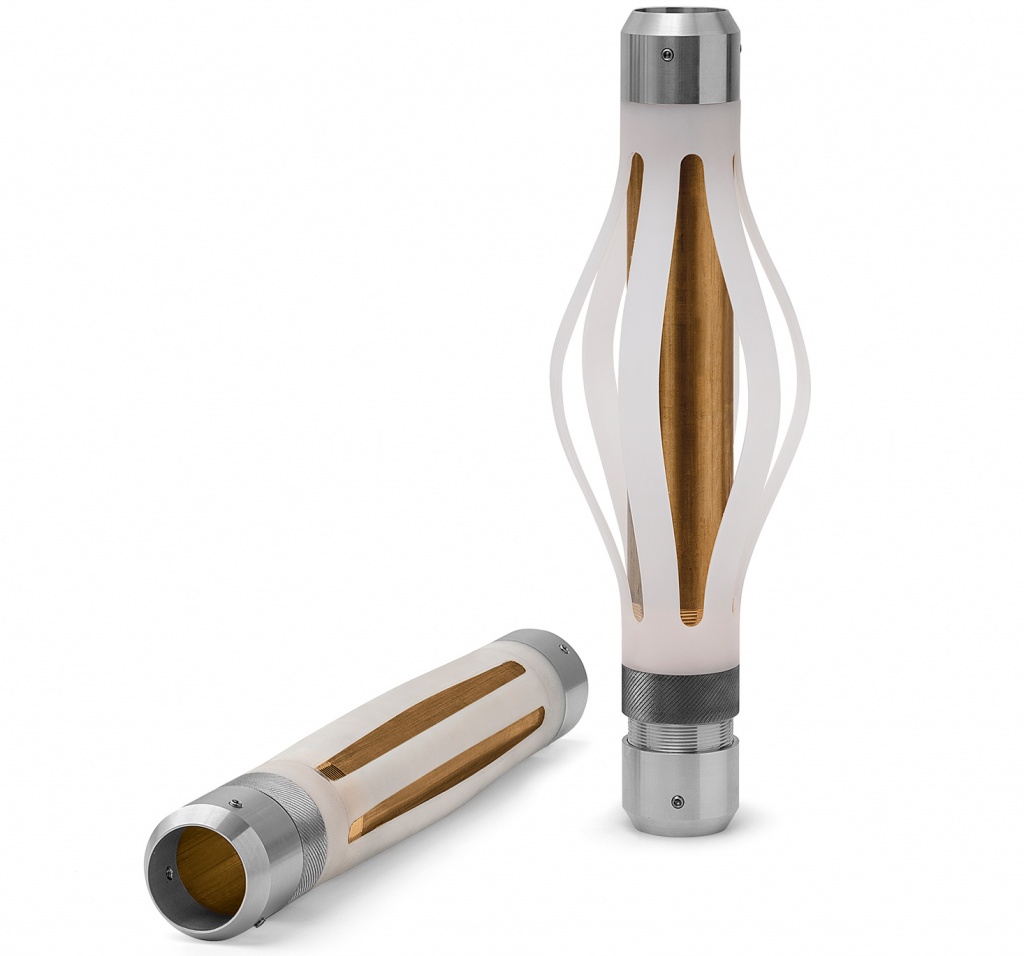

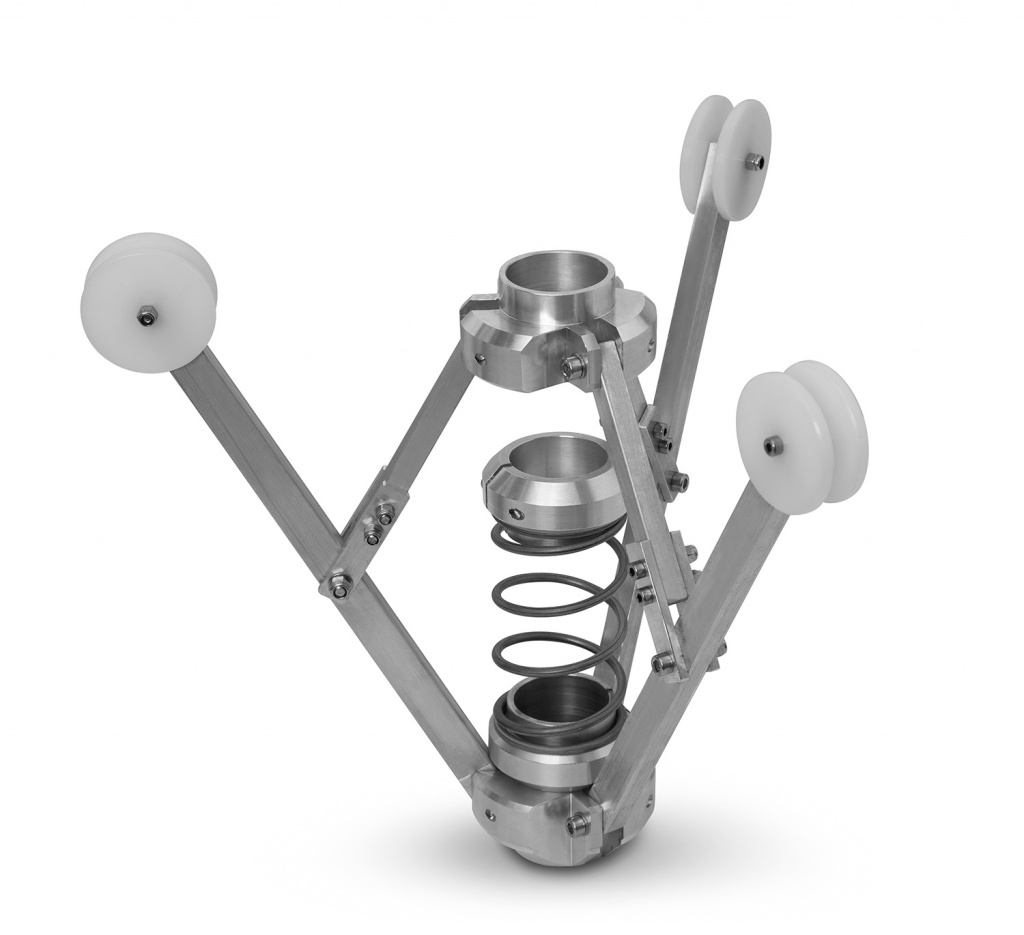

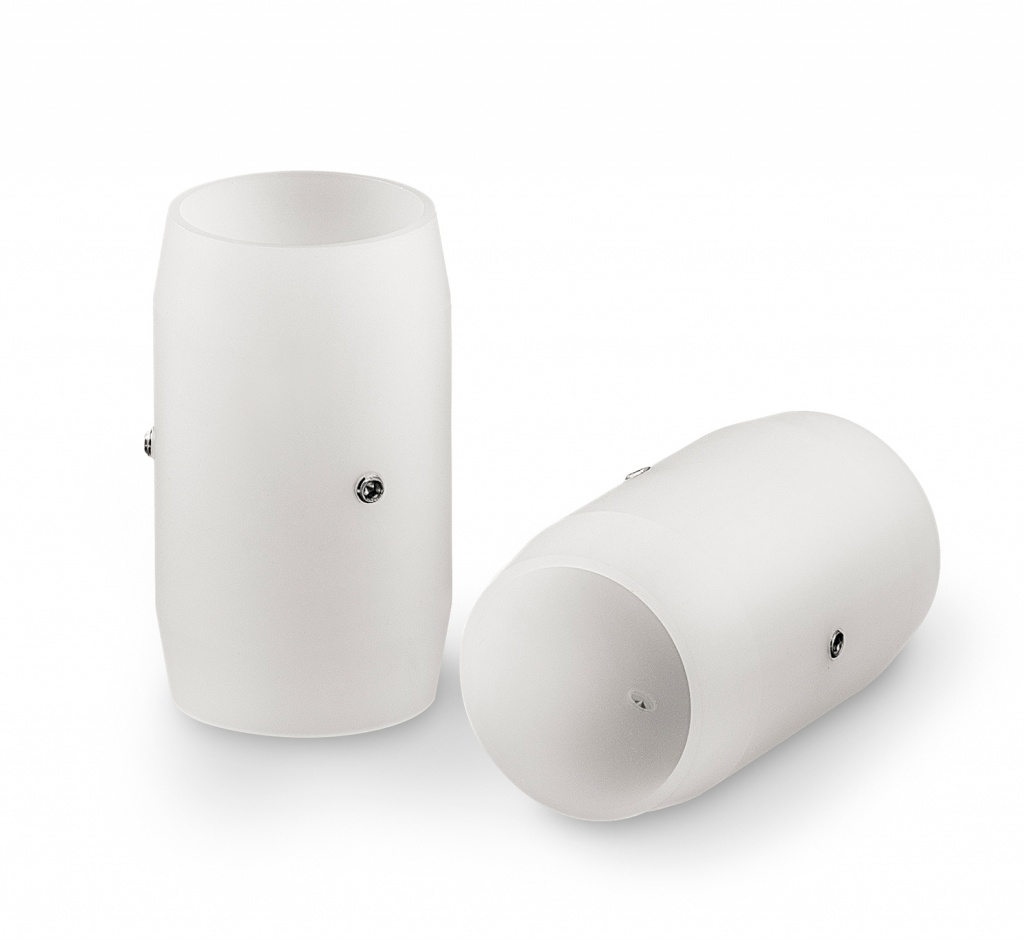

Outer diameter of Teflon cylinders
50 mm
Body material
steel
Mass probe
4.1 kg
Operating temperature range
25 ÷ +85 °C
Maximum shock load
500 g
Variante
Rotation angle
Maximum well depth
Measured values
Calculated and visualized values
Angular resolution
Absolute tilt measurement accuracy
Absolute accuracy of azimuth measurement
Relative angle measurement error
Measurement speed
The number of digits
Baud rate
Maximum number of measurements per pass
Supply current
Standard connector
Interface
Power supply
Operating system
Number of probe sections
Total probe length
External diameter
Outer diameter of Teflon cylinders
Body material
Mass probe
Operating temperature range
Maximum shock load

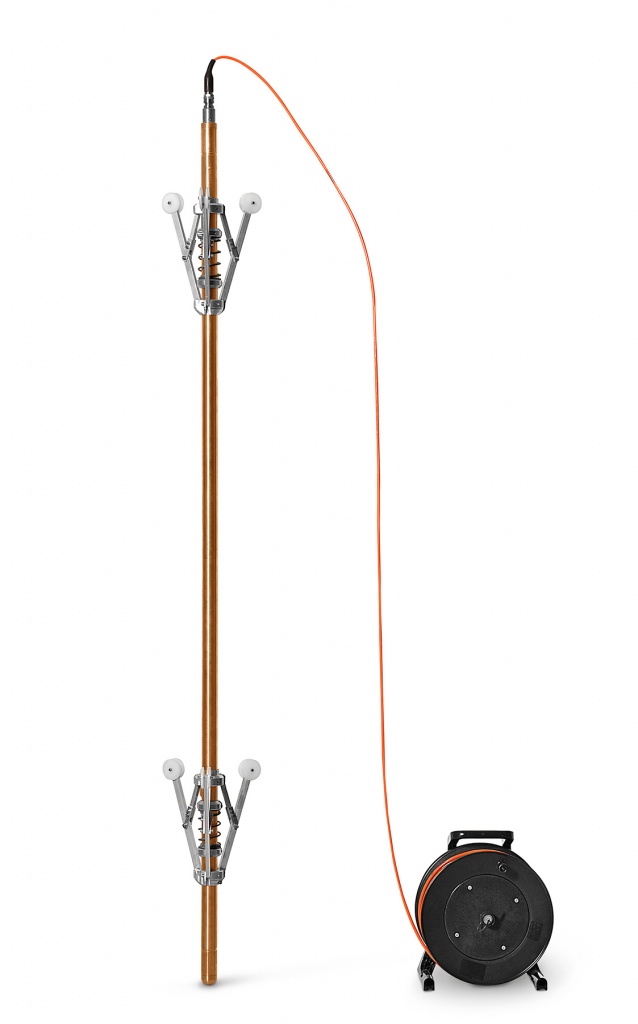

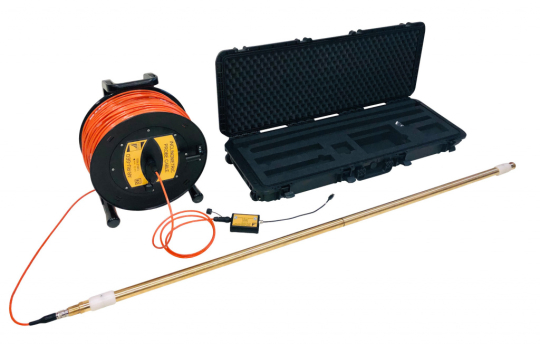

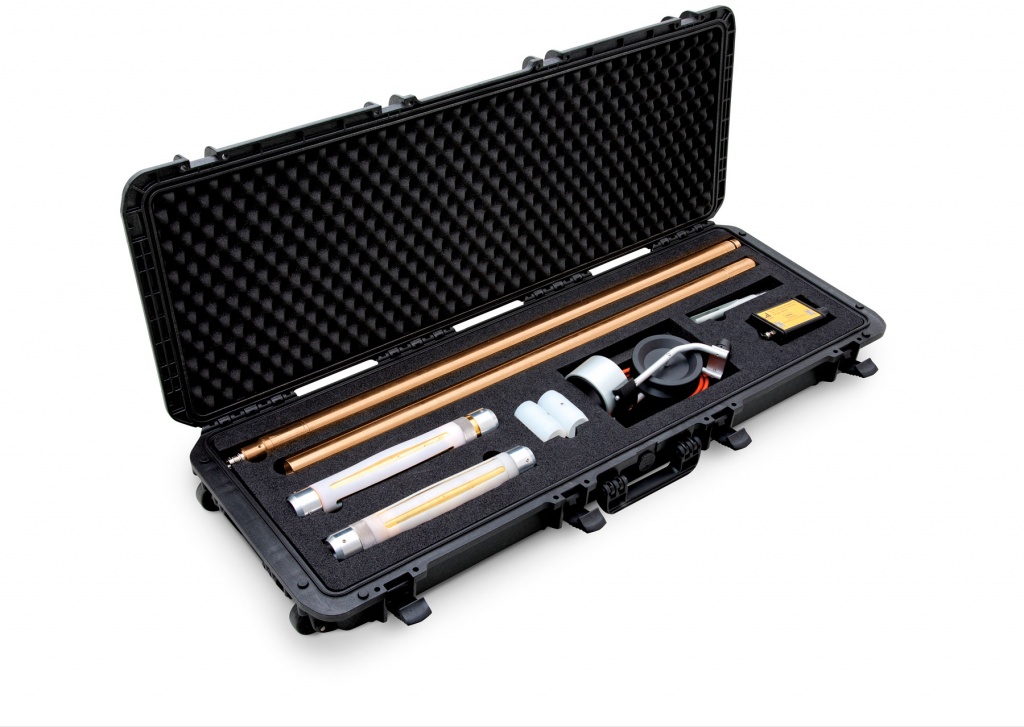

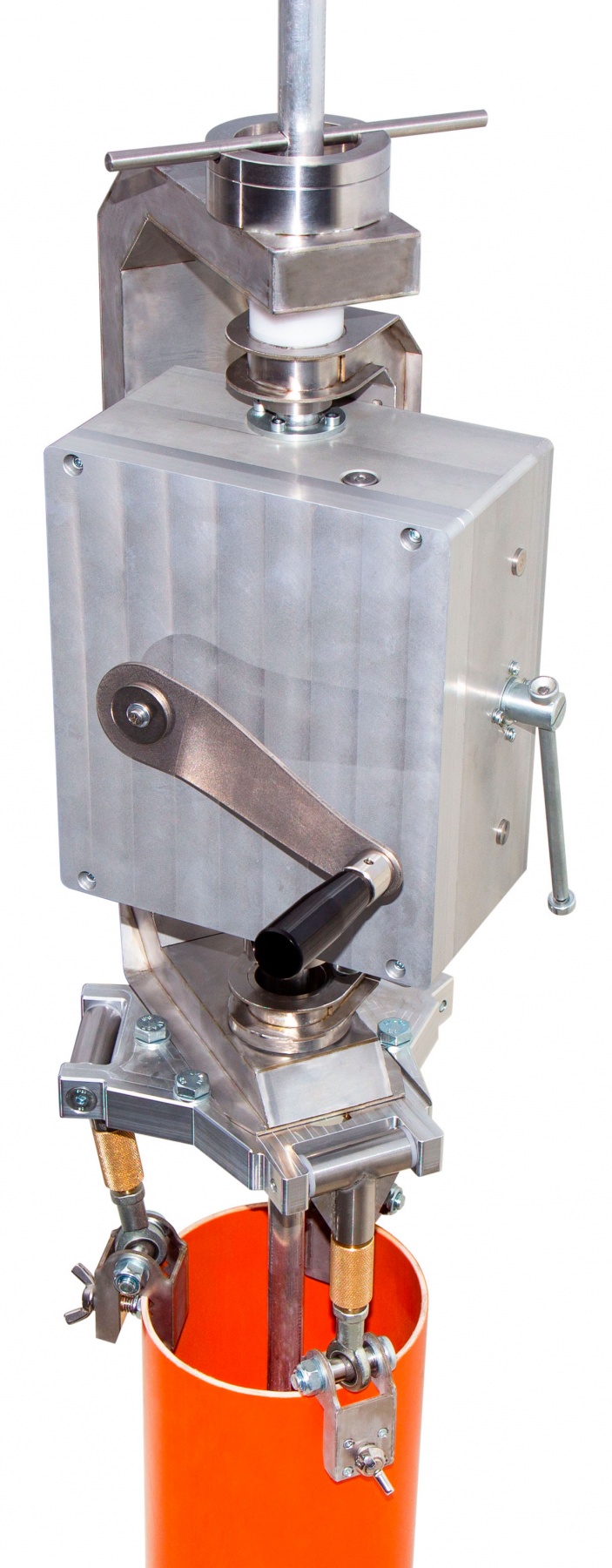

[GD - INCPROINC] Sonda de inclinometro INCLIS
360° on three axes
up to 850 m
vector components of accelerometer and magnetic field; temperature of accelerometer and magnetic compass
Inclination; azimuth; AX; AY; AZ – components of acceleration vector HX; HY; HZ – magnetic field components GTF – Gravity Tool Face – angle of probe rotation relative to gravity field MTF – Magnetic Tool Face – angle of probe rotation relative to magnetic field AccelTemp - accelerometer sensor temperature MagTemp – magnetometer sensor temperature G - TOT – total gravity field in g M - TOT - total magnetic field in Gauss
0.02°
± 0.2°
± 0.5°
0.1°
up to 8 Hz
3C accelerometer - 24 Bit 3C magnetometer - 16 bit
115200
up to 32; 768
At sampling rate 8 Hz - 16 mA At sampling rate 1 / 4 Hz - 500 μA In standby mode - 50 μA
