Descripción general

SUMMIT M Vipa

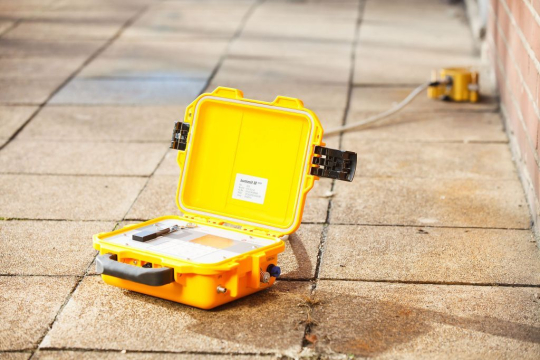

is a three-channel seismic station designed for vibration monitoring with an additional channel for noise monitoring. The station has built-in lithium-ion battery, making SUMMIT M Vipa an excellent solution for autonomous mobile measurements. The presence of remote control with automatic data transmission allows to connect several stations via Ethernet or using a radio channel to create a vibration monitoring network. High-resolution 24-bit ADC provides high dynamic range and ultra-sensitive vibration monitoring for both continuous and triggered recording.

GD-SUMMVIP

DMT-3D/DIN

is a seismometer used with SUMMIT M Vipa system for vibration and microseismic monitoring. The sensor is equipped with three geophones with a frequency range from 1 to 315 Hz. Due to its weight, for most applications, the device does not require additional mounting, but if necessary, it can be fixed above the central mounting hole with a bolt. For ease of setup and installation, the seismometer has a built-in level.

  • Seismology extension - increased sensitivity and dynamic range of > 122 dB, additional sample rates: 125 Hz 250 Hz, 500 Hz, optional SeedLink server
  • Printer - external serial protocol printer
  • Alarm switch - external relays for switching external alarm devices, can operate via digital I/O interface of VIPA or remotely via mobile network
  • Intelligent sensor supply - external sensor supply for connecting third party ICP-type sensors

GD-SUMMVIP

Especificación
GD-SUMMVIP
Channels 3 channels (X -; Y -; Z - vibration) 1 aux - channel (acoustic)
Sample Interval 1 kHz; 2 kHz; 5 kHz; 10 kHz
Frequency range DC - 5 kHz
Recording mode Continuous or event based
Trigger mode Amplitude threshold for each channel; trigger also on KB and vector sum
Record length 1 sec to 60 sec per file
Pre-trigger length 0 sec to record length - 1
Output sample resolution 32 bit
Signal input range ± 5 V (10 V pp ) differential input ( optional ± 20 V on request)
Measurement range Up to 175 mm / s with standard sensor DMT - 3D / DIN; larger ranges on request
Time synchronisation Internal GPS module (ext. Antenna); absolute time accuracy : < 10 µs
Data storage Internal 4GB (larger on request) or external USB - mass - storage device
Instantaneous dynamic range ≥ 113 dB @ 1000 Hz sample rate
Crosstalk rejection ≥ 110 dB (between all channels)
Total harmonic distortion ≤ - 100 dB
Common mode rejection ≥ 105 dB
Data communication 100base - TX Ethernet; internal LTE / EDGE / GSM modem
Internal battery Li - Ion; typical life time >40 hours
External power supply 9 - 18 V DC (optional 9 - 36 V) max 15 W during battery charge
Display Colour graphical LCD with 320 x 240 resolution
Dimensions 30 x 25 x 12 cm
Weight 3.6 kg
Operation temperature 20°C to + 70°C
Humidity range 0 – 95 %
Protection class IP 67
Case Solid waterproof housing deployable in any surface environment
USB External storage on memory stick or hard disk drive
Ethernet-LAN Router; switches; PC
Mobile Antenna External mobile GSM antenna
GPS Antenna External GPS antenna for precise time stamp
Vibration sensor External geophone vibration sensor - 3D sensor or splitted sensors; borehole sensors - 12 V DC power supply provided for active sensors
AUX Channel Additional recording channel; e.g. for microphone - 12 V DC power supply - Switchable phantom power (24 V / 48 V) for microphones
Digital IO Multipurpose IO for accessories (alarm devices; trigger devices; ..)
Serial IO External RS232 for external printer
Power External 9 - 18 V DC (optional 9 - 36 V DC)
