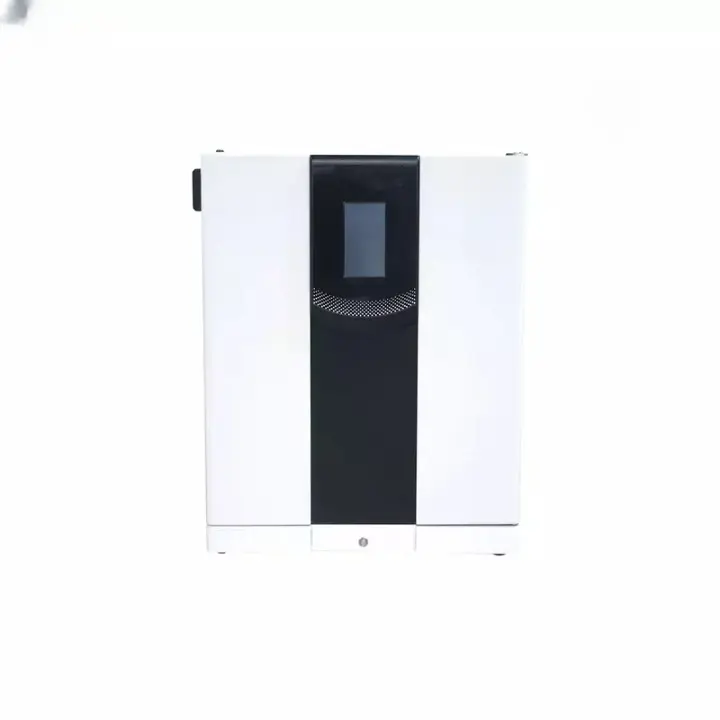

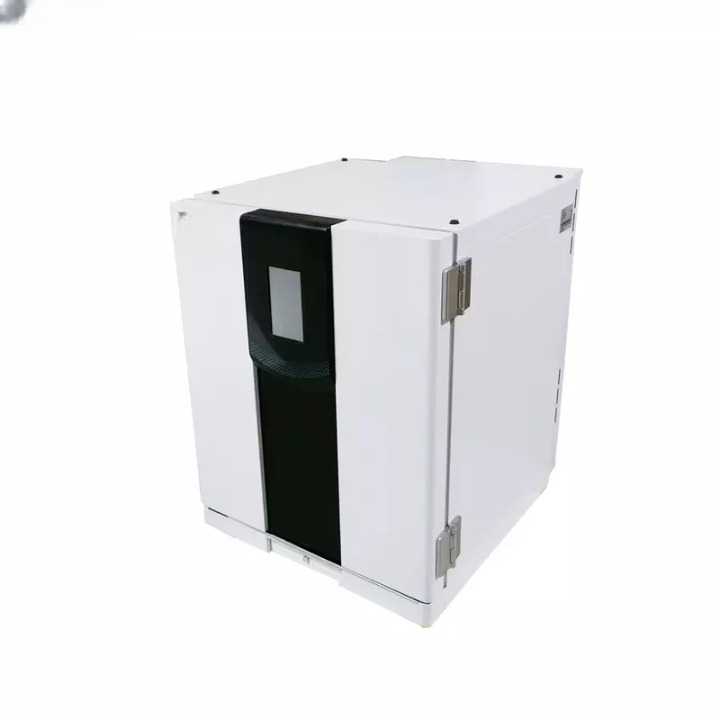

Incubadora de CO2 (50/80/150/180 L)

https://www.cotecno.cl/web/image/product.template/632919/image_1920?unique=b8babbf

Requiere cotización

  • SKU

Esta combinación no existe.

Descargar catalogo (PDF)
Contáctanos



Compartir

Incubadora de CO2 (50/80/150/180 L)

Descripcion general

Pantalla tactil a color de 5.0 pulgadas y sensor importado de alta precision para concentracion de CO2 por infrarrojo.

Integra gestion de autoridad en tres niveles y tres metodos de esterilizacion: UV, calor humedo y alta temperatura.

Utiliza calentamiento por camisa de aire en seis lados, diseno de ducto de aire para buena uniformidad de temperatura y recuperacion rapida, con deposito de gran area de evaporacion, calentamiento de puerta y filtros para mantener la limpieza del aire en la camara de trabajo.

Especificaciones técnicas

Parametro50 L80 L150 L180 L
Tipo de calentamientoAir JacketAir JacketAir JacketAir Jacket
Rango de temperaturaRT+5-55℃RT+5-55℃RT+5-55℃RT+5-55℃
Resolucion de temperatura0.1℃0.1℃0.1℃0.1℃
Fluctuacion de temperatura±0.1℃±0.1℃±0.1℃±0.1℃
Uniformidad de temperatura±0.3℃±0.3℃±0.3℃±0.3℃
Sensor de CO2Infrared Sensor measuring range: 0.0-21.0%Infrared Sensor measuring range: 0.0-21.0%Infrared Sensor measuring range: 0.0-21.0%Infrared Sensor measuring range: 0.0-21.0%
Rango de control de CO20.0-20.0%0.0-20.0%0.0-20.0%0.0-20.0%
Precision de control de CO2±0.1%±0.1%±0.1%±0.1%
Camara interiorHeating steelHeating steelHeating steelHeating steel
Carcasa exteriorCold-Roll Steel Sheet, Surface electrostatic sprayingCold-Roll Steel Sheet, Surface electrostatic sprayingCold-Roll Steel Sheet, Surface electrostatic sprayingCold-Roll Steel Sheet, Surface electrostatic spraying
Capa aislantePolyurethanePolyurethanePolyurethanePolyurethane
CalentadorHeating sheetHeating sheetHeating sheetHeating sheet
Metodo de humedadDisk humidifierDisk humidifierDisk humidifierDisk humidifier
Potencia nominal0.4kW0.5kW0.6kW0.7kW
Ventilacion de gas27mm rear (with test hole function)27mm rear (with test hole function)27mm rear (with test hole function)27mm rear (with test hole function)
OtroHEPA filterHEPA filterHEPA filterHEPA filter
Modo de control de temperaturaPID controlPID controlPID controlPID control
Modo de ajuste de temperatura5.0-inch touch screen5.0-inch touch screen5.0-inch touch screen5.0-inch touch screen
Modo de visualizacion de temperaturaTemperature displayed on left, concentration displayed on right screenTemperature displayed on left, concentration displayed on right screenTemperature displayed on left, concentration displayed on right screenTemperature displayed on left, concentration displayed on right screen
Temporizador0-9999 minutes (with timing wait function)0-9999 minutes (with timing wait function)0-9999 minutes (with timing wait function)0-9999 minutes (with timing wait function)
Funcion de operacionFixed value operation, timed operation, automatic stopFixed value operation, timed operation, automatic stopFixed value operation, timed operation, automatic stopFixed value operation, timed operation, automatic stop
Funcion de esterilizacionUV sterilization, wet heat sterilization, sterilization at high temperature 140/180℃UV sterilization, wet heat sterilization, sterilization at high temperature 140/180℃UV sterilization, wet heat sterilization, sterilization at high temperature 140/180℃UV sterilization, wet heat sterilization, sterilization at high temperature 140/180℃
Funcion adicionalSensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memorySensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memorySensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memorySensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory
SensorPT100, water level sensor, infrared CO2 sensorPT100, water level sensor, infrared CO2 sensorPT100, water level sensor, infrared CO2 sensorPT100, water level sensor, infrared CO2 sensor
Dispositivo de seguridadHigh temperature alarm, concentration alarm, other alarmHigh temperature alarm, concentration alarm, other alarmHigh temperature alarm, concentration alarm, other alarmHigh temperature alarm, concentration alarm, other alarm
Camara interior (An x Pr x Al)345*375*388404*439*454509*472*632540*500*670
Tamano exterior (An x Pr x Al)500*500*655585*585*766593*746*842629*791*893
Tamano del embalaje (An x Pr x Al)620*620*855705*705*966713*866*1042749*911*1093
Volumen50L80L150L180L
Numero maximo de estantes4567
Carga por estante15kg15kg15kg15kg
Espacio de estante35mm35mm35mm35mm
Alimentacion (50/60HZ)AC220V/1.8AAC220V/2.3AAC220V/2.7AAC220V/3.2A
Peso neto / bruto (kg)55/7097/11293/108115/130
Numero de carcasa estandar2222
Rack shelf estandar4444
Accesorios opcionales(Optional 90 ℃ wet heat sterilization carbon dioxide infrared sensor) Shelf, printer(Optional 90 ℃ wet heat sterilization carbon dioxide infrared sensor) Shelf, printer(Optional 90 ℃ wet heat sterilization carbon dioxide infrared sensor) Shelf, printer(Optional 90 ℃ wet heat sterilization carbon dioxide infrared sensor) Shelf, printer

Aplicaciones

Uso recomendado

Especialmente adecuada para cultivo de celulas animales y de tejidos. Puede utilizarse en unidades medicas, ciencias de la vida, inmunologia, genetica, medicina y tambien en el cultivo de microorganismos comunes.
