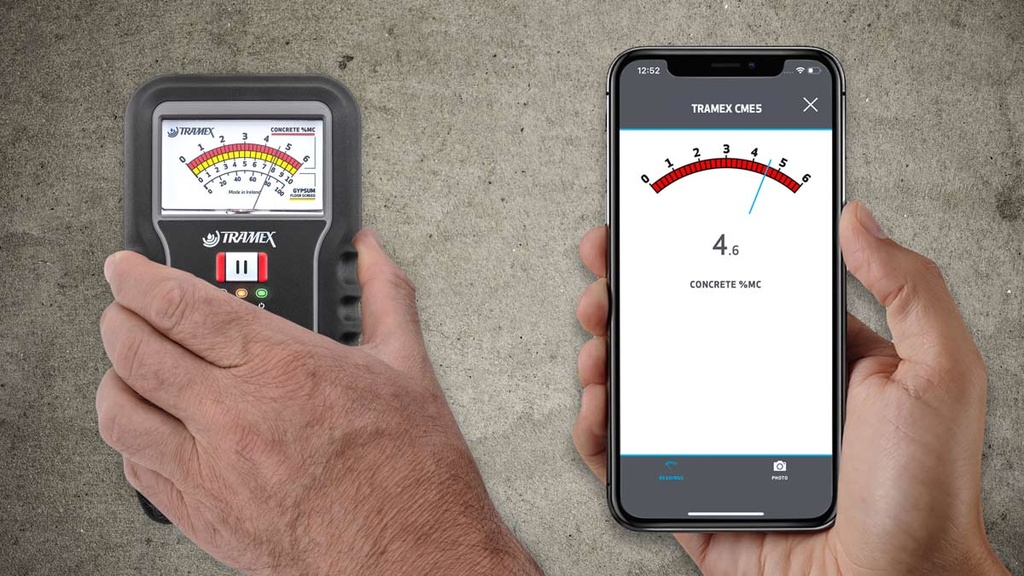

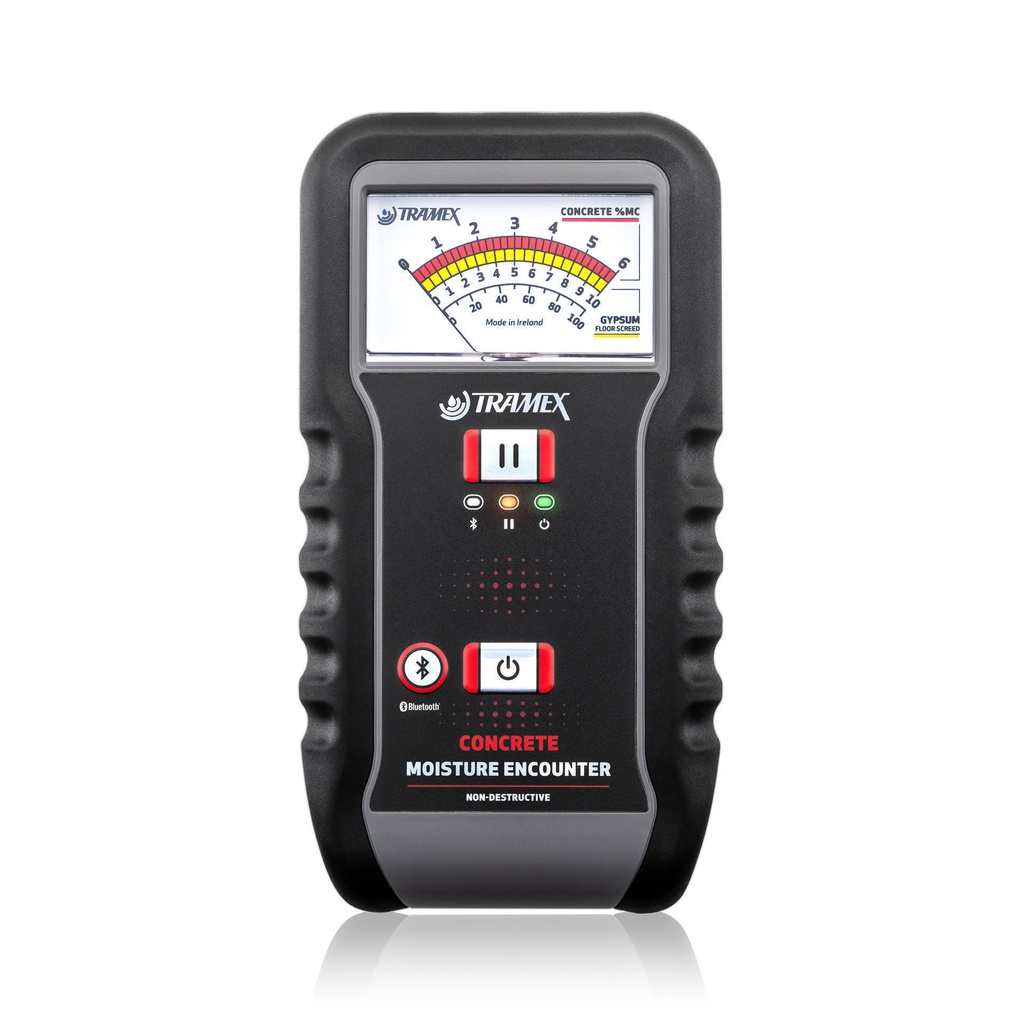

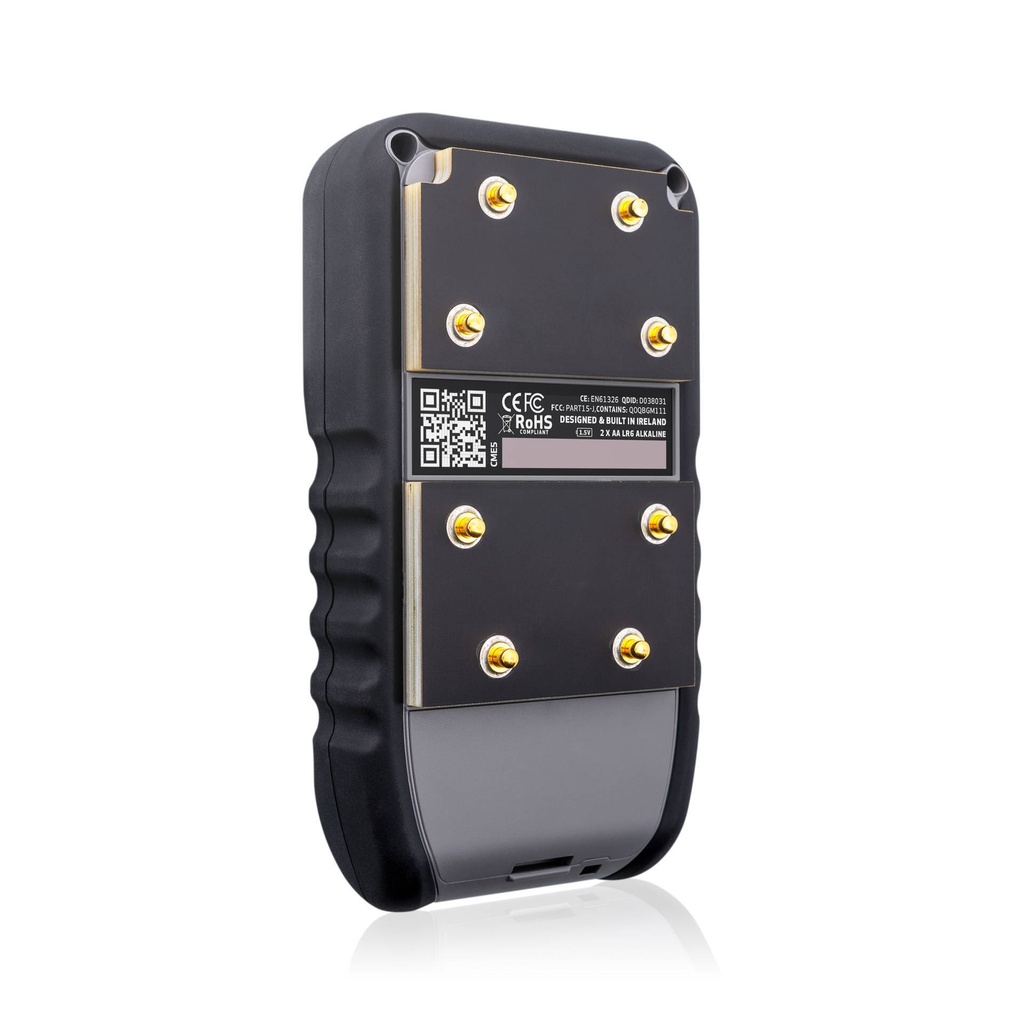

Concrete Moisture Encounter 5 - CME5 - Measuring Range:
| Depth of penetration: |
approx. ¾" (20 mm) |
| Moisture Content for Concrete: |
0 to 6% |
| Comparative for Gypsum floor screed: |
0 to 10 |
| Reference scale: |
0 to 100 |

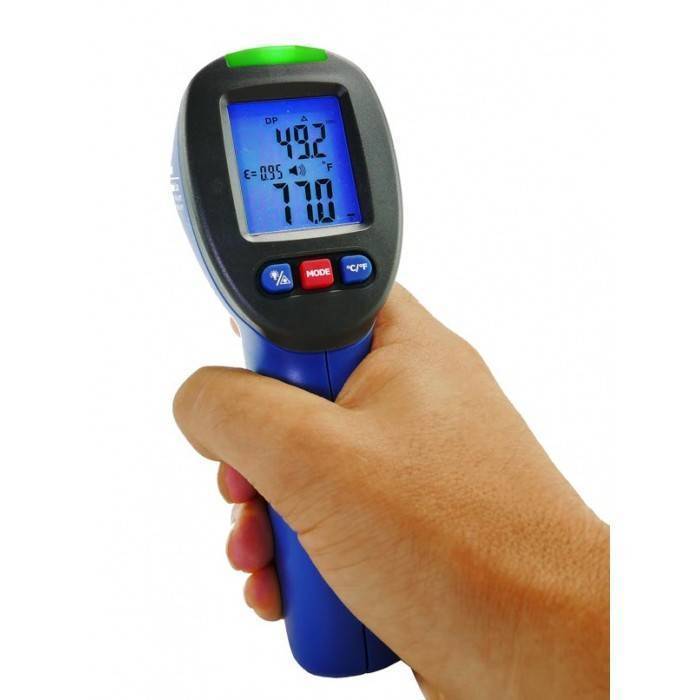

Infrared Thermometer and Dew Point Detector - IRT2DP - Measuring Range:
| Temperature Range: |
-58ºF to 716ºF (50°C to 380°C) |
| Display resolution: |
0.1 |
| Emissivity: |
Fixed at 0.95 |
| Temperature accuracy: |
-58º to 32ºF / -50º to 20ºC: +/- 32º to 716ºF / 3.5ºC 20º to 380 ºC: +/-1.5ºC |
| Wavelength range: |
8 – 14um |
| Humidity Range: |
0 - 100% RH |
| Humidity accuracy: |
+/-3.5% (20% to 80%) |
| Dew point temperature: |
(-22 to 212)ºF / (-30 to 100)ºC |
| D:S: |
20:1 |
| Operating temp: |
32 to 122ºF (0 to 50ºC) |
| Storage temp: |
-4 to 140ºF (-10 to 60ºC) |
| Relative humidity: |
10%-90%RH operating, <80%RH storage |
| Power Supply: |
9V battery, NEDA 1604A or IEC 6LR61, or equivalent |

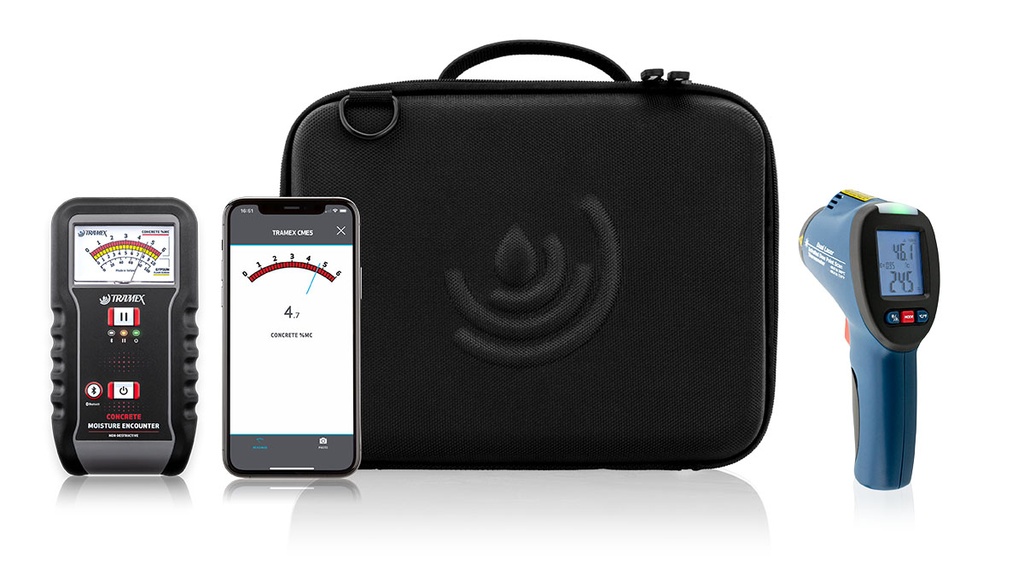

Specifications of Kit:
| Size: |
13.2” x 9.5” x 3.2” (33.5cm x 24cm x 8cm) |
| Weight: |
2.8lbs (1.3kg) |
| Power: |
2 x AA batteries, 1 x 9 volt PP3 battery |
