ROOFING MASTER KIT - RMK

Tramex https://www.cotecno.cl/shop/rmk-roofing-master-kit-rmk-594364 https://www.cotecno.cl/web/image/product.template/594364/image_1920?unique=f7b8ccf

Requiere cotización

Esta combinación no existe.

Descargar catalogo (PDF)
Contáctanos
SKU: RMK



Compartir

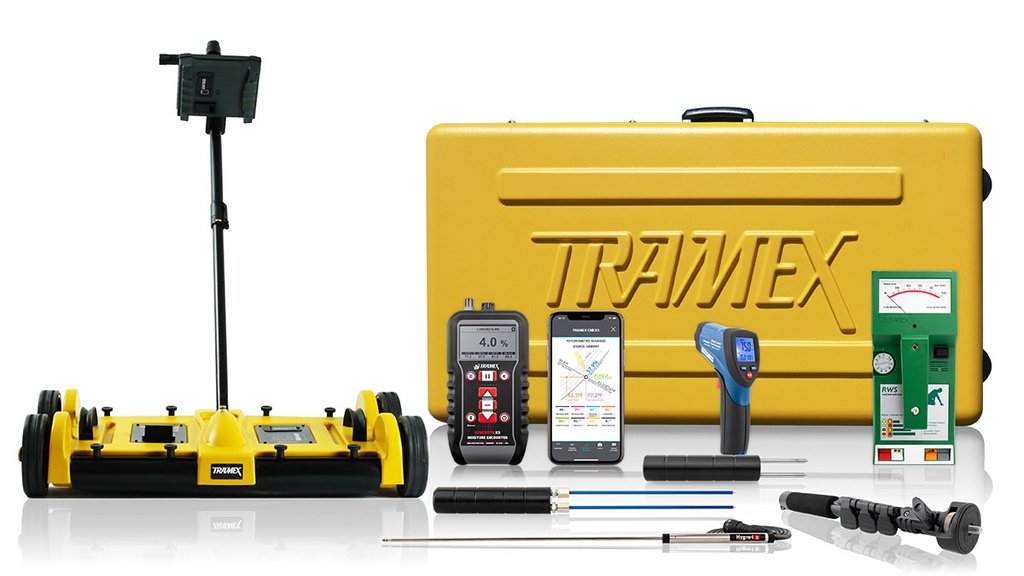

The Tramex RMK is the complete kit for the Roofing Professional, including the Dec Scanner and the RWS Roof & Wall Scanner allowing for continuous and point-of-contact, non-destructive surveying of moisture conditions in roofing and waterproofing systems up to 6 inches in depth. The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 digital moisture meter and probes. An infrared surface thermometer gives surface temperature. This kit comes in a protective heavy-duty wheeled carry case with die-cut foam lining. The Tramex Roof Master Kit is used to perform ASTM D7954. Bluetooth connectivity to the Tramex Meters App allows for visualization of Tramex CMEX5 readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your CMEX5 meter screen on your phone when extending to hard to reach places.

Contenido del kit

Especificaciones

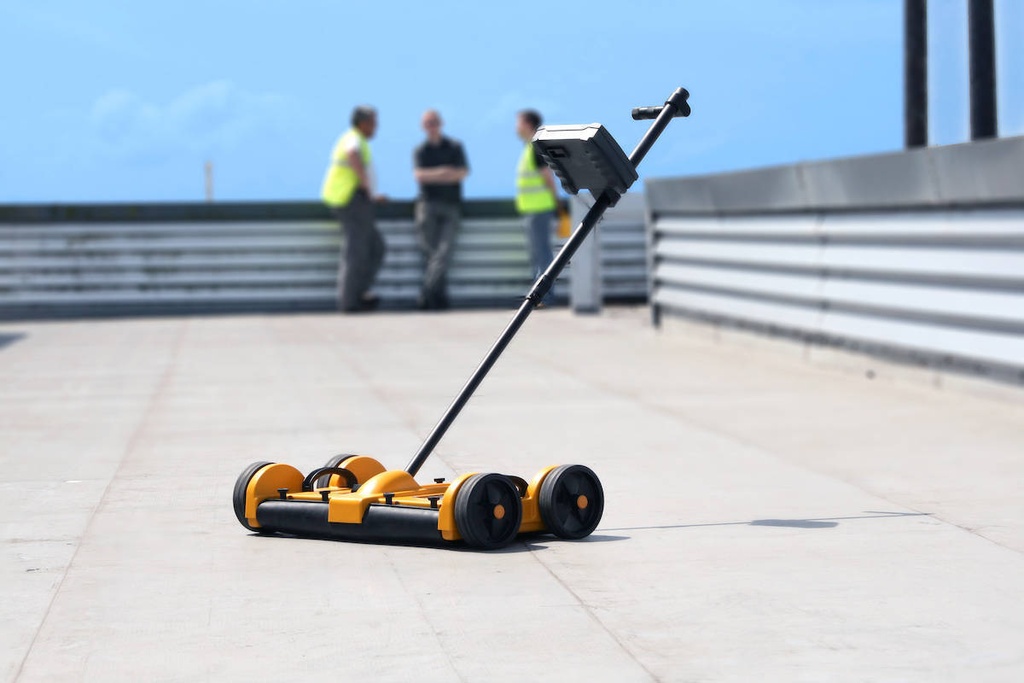

Dec Scanner - Measuring Range:

Comparative Max. depth of penetration: 6” (152 mm)
Measuring Range: 0 to 100
Limitations: Some EPDM, Butyl rubber roofing and other conductive roofing

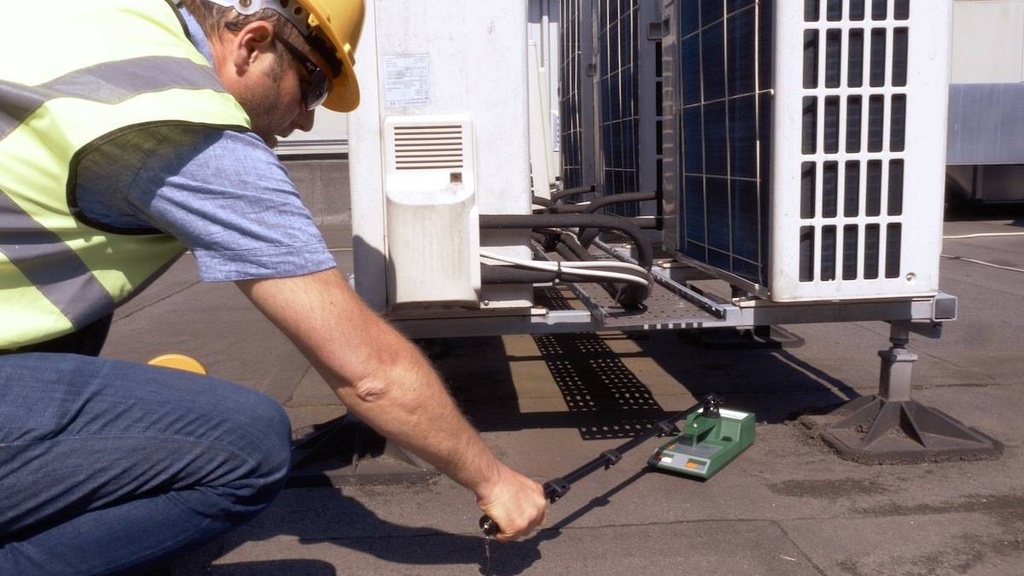

Roof and Wall Scanner  - RWS - Measuring Range:

Depth of penetration: 4" (100mm)
Sensitivity: Four Ranges:>
  Roofing Mode with high and low sensitivity.
  EIFS / Foam Roof Insulation Mode with high and low sensitivity.

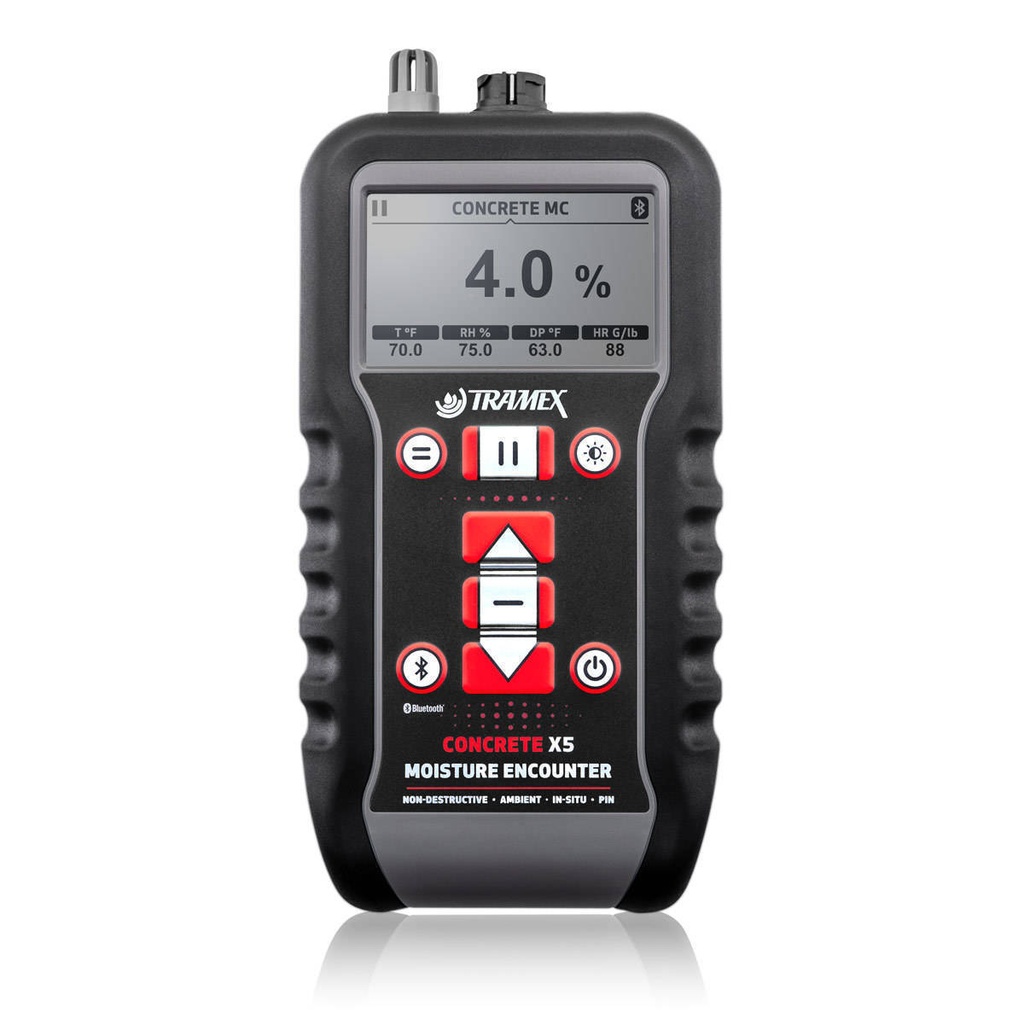

Concrete Moisture Encounter X5 - CMEX5 - Measuring Range:

Depth of penetration in concrete: approx.  ¾" (20mm)
Moisture content for Concrete: 0 → 6.9 %
Comparative for Gypsum floor screed: 0 → 12
CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
Reference scale: 0 → 100
Relative Humidity: 0 → 99%

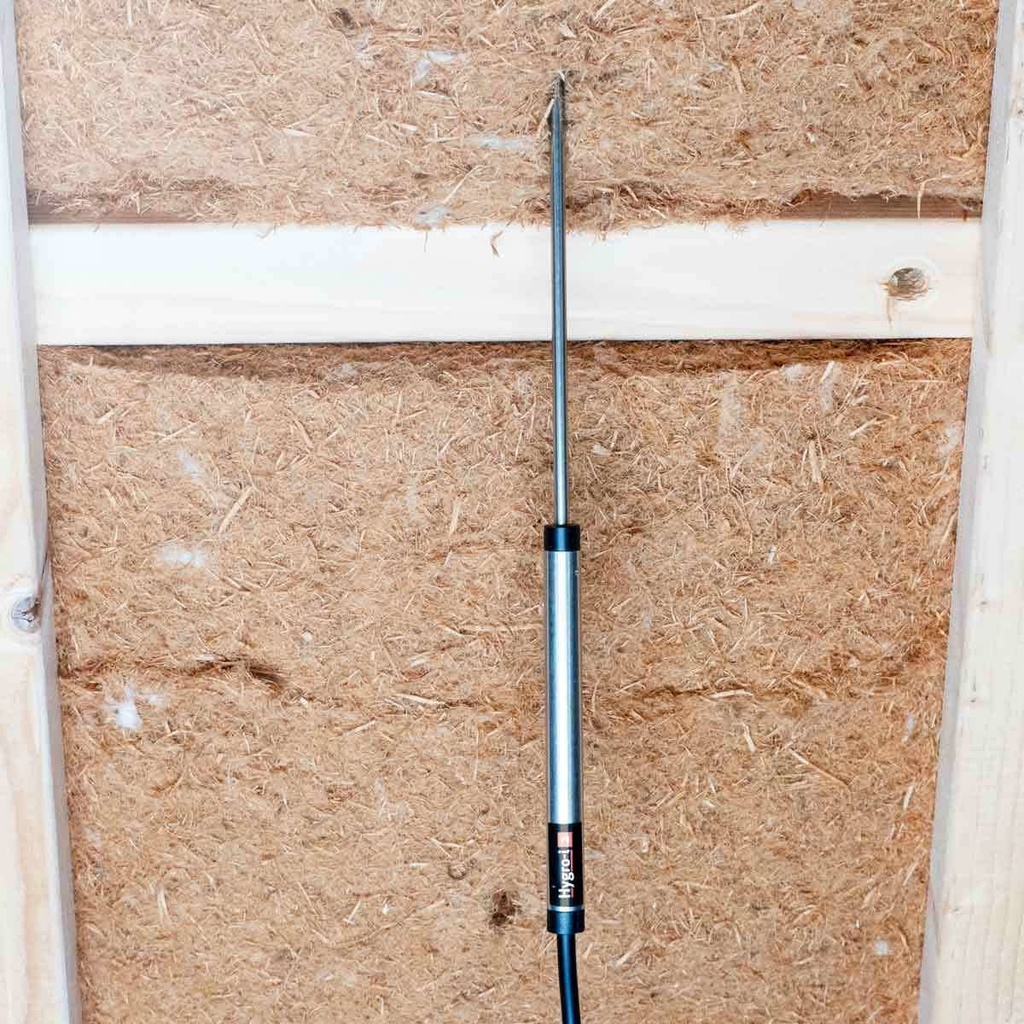

(with optional Hygro-i2 ® probe): Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes): 5 → 30 %



Infrared Thermometer  IRT2

Temperature range: -58ºF ~ 1202ºF (-50 to 650 ºC)
Distance to Spot ratio: D:S = 12:1
Display resolution: 0.1 ºF(0.1ºC)   <1000 1ºC   >1000
Accuracy for targets:

Assumes ambient operating temperature of  73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC)

±4.5ºF (2.5ºC) 68ºF ~572ºF (20ºC ~300ºC)  ±1.0% ± 1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
Repeatability: -58~68ºF (-50~20ºC)  :  ± 2.3ºF (1.3ºC) 68~1202ºF (20~650ºC) : ±0.5% or ±0.9ºF (0.5ºC)
Response time: 150ms
Spectral response: 8~14um
Emissivity: Digitally adjustable from 0.10 to 1.0
Over range indication: LCD will show “----”
Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
Operating temp.: 32 to 122ºF ( 0 to 50ºC)
Storage temp.: 14 to 140ºF (–10 to 60ºC)
Relative humidity: 10%~90%RH operating, <80%RH storage
Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
Safety: “ CE ” Comply with EMC



Specifications of Kit:

Size: 41.2" x 21.1" x 12" (1045mm x 535mm x 305mm)
Weight: 59.5lbs (27kg)
Power:  4 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE Batteries  (included)
