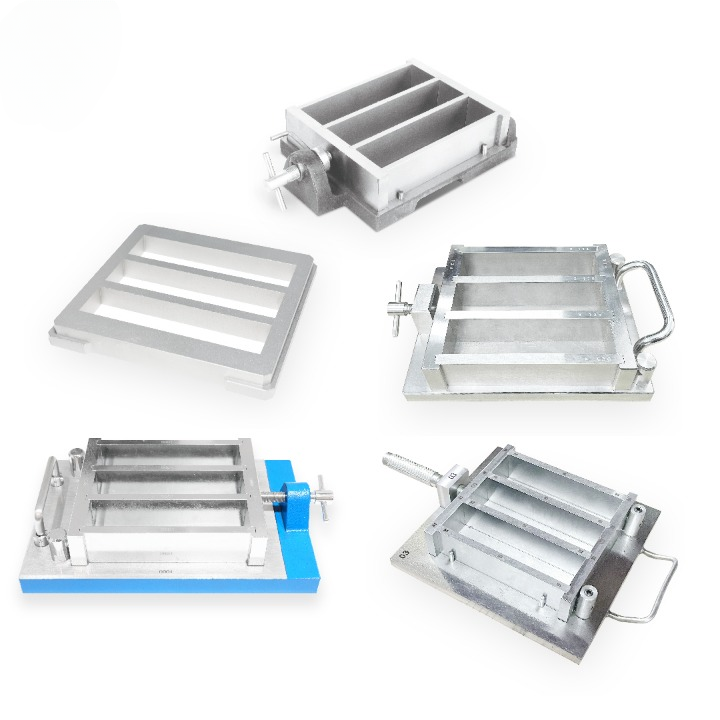

Three Gang molde For Prisms

Name: [B-01-200-0256.1] Three Gang molde For Prisms (B-01-200-0256)
Brand: Belltronic
SKU: B-01-200-0256.1

Normas asociadas ASTM C348 EN 196-1 ISO 679 Referencias técnicas asociadas al producto. No implican certificación ni cumplimiento oficial salvo que se indique expresamente.

Three Gang molde For Prisms.

Requiere cotización

Modelo
- B-01-200-0256
- B-01-200-0730

Esta combinación no existe.

Descargar catalogo (PDF)

Contáctanos

DETALLE
ESPECIFICACIONES TÉCNICAS

Three Gang molde For Prisms.

Especificacion	Valor
Modelo	B-01-200-0256
Material	Carbon Steel & Cast Iron
Type of Prisms (mm)	40 x 40 x 160
Dimension (mm)	270 (L) x 167 (W) x 60 (H)
Approx. Weight	6.5 kg
Material	Carbon Steel
Type of Prisms (mm)	40.1 x 40 x 160
Dimension (mm)	243 (L) x 175 (W) x 57 (H)
Hardness	Over 200 HV
Approx. Weight	9.5 kg
Standard	EN196-1, EN ISO 679, ASTM C348
Material	Carbon Steel
Type of Prisms (mm)	40.1 x 40 x 160
Dimension (mm)	350 (L) x 230 (W) x 55 (H)
Hardness	Over 200 HV
Approx. Weight	10.9 kg
Material	Carbon Steel
Type of Prisms (mm)	40.1 x 40 x 160
Dimension (mm)	325 (L) x 200 (W) x 65 (H)
Hardness	Over 200 HV
Approx. Weight	10 kg
Standard	EN196-1, EN ISO 679, ASTM C348
Name	Aluminium Feeding Hopper
Product Dimension	195 (L) x 195 (W) x 20 (H) mm
