Termometro infrarrojo de superficie y detector de punto de rocio - WP

https://www.cotecno.cl/web/image/product.template/519414/image_1920?unique=5b0f05b

Requiere cotización

Esta combinación no existe.

Descargar catalogo (PDF)
WP_DUAL_VERSION_RECOMMENDED
Contáctanos
SKU: filler_13177



Compartir

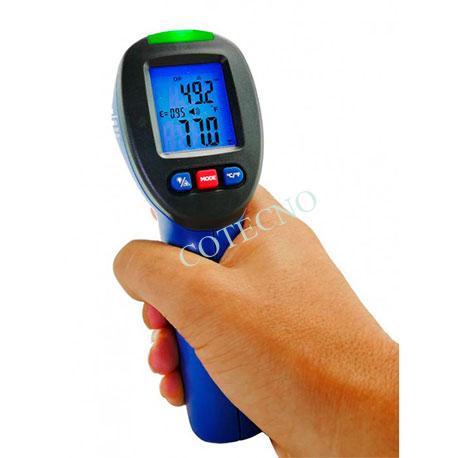

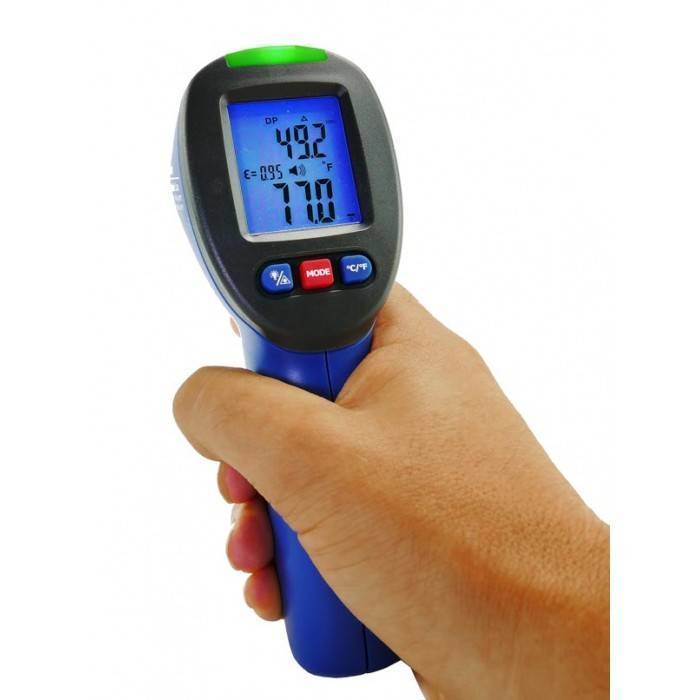

The IRT2DP is a handheld dual laser, non-contact Infrared Thermometer and Dew Point detector with tricolor light (and audible) indication as reading goes close to dew point temperature. It is used to measure and display ambient and surface temperature, relative humidity & dew point temperature.

Only available in Kits

Características

  • Rapid detection function
  • Precise non-contact measurements
  • Dual laser targeting
  • 3 Mode display- Humidity / Dew Point Temperature / Ambient Temperature
  • Green  - Yellow – Red LED light and audible signal indicate proximity to Dew Point Temperature
  • Automatic Data Hold
  • User selectable ℃ or ºF
  • Pre-set Emissivity of 0.95
  • Backlight LCD display
  • Unique flat surface, modern housing design

Especificaciones

Infrared Thermometer and Dew Point Detector - IRT2DP - Measuring Range:

Temperature Range: -58ºF to 716ºF (50°C to 380°C)
Display resolution: 0.1
Emissivity: Fixed at 0.95
Temperature accuracy: -58º to 32ºF / -50º to 20ºC: +/- 32º to 716ºF / 3.5ºC 20º to 380 ºC: +/-1.5ºC
Wavelength range: 8 – 14um
Humidity Range: 0 - 100% RH
Humidity accuracy: +/-3.5% (20% to 80%)
Dew point temperature: (-22 to 212)ºF / (-30 to 100)ºC
D:S: 20:1
Operating temp: 32 to 122ºF (0 to 50ºC)
Storage temp: -4 to 140ºF  (-10 to 60ºC)
Relative humidity: 10%-90%RH operating, <80%RH storage
Power Supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent

Guías de usuario

English
User Guide
